Product Details:
|
| Product Name: | China Frame Servo Composite Hydraulic Press | Force: | 630T |
|---|---|---|---|
| Keywords: | Composite Hydraulic Press | System: | Servo |
| Advantage: | High Accuracy | ||
| High Light: | H Frame Hydraulic Press Machine 600T,600 ton H Frame Hydraulic Press Machine,Servo Composite Hydraulic Press |
||

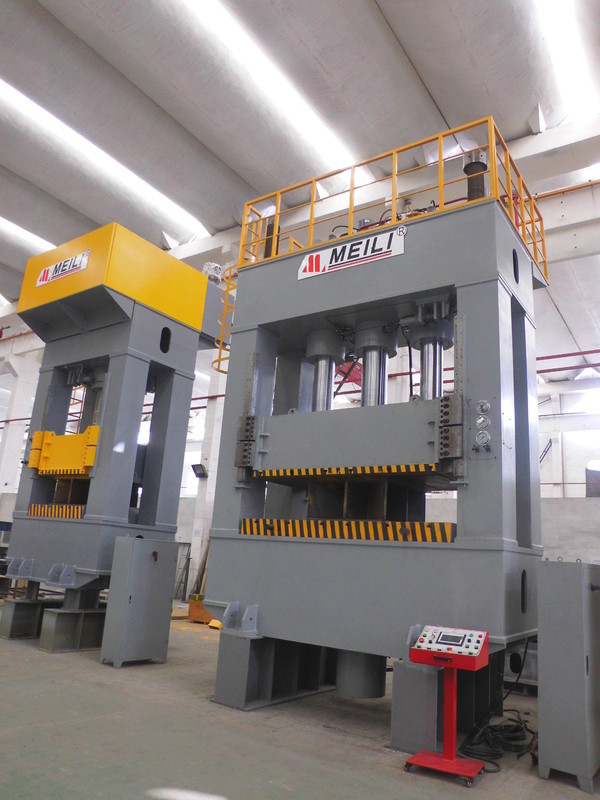

China Frame Servo Composite Hydraulic Press
Servo hydraulic press adopts full servo control system, with imported pressure sensor and the American motion control module can accuracy to control the pressure and displacement. The displacement Accuracy control can reach ± 0.02mm. The machine adopts the whole tempering treatment to eliminate the stress.It is processed by the five face milling machine center, and eight face guiding structure with high stability.
Our custom Column Presses are available from 2-1000 tons. Each press can be equipped with hydraulic power unit and controls tailored to your specific application.
H Frame Hydraulic Press
Optional
Low noise, noise can be controlled at about 60 decibels.
Working position, speed and pressure can be adjusted steplessly.
High efficiency and energy saving, energy consumption is 30% -50% less than ordinary motors.
Quick response, high pressure and position repeatability
High efficiency, multiple protections inside, extremely low failure rate.
12 hours of continuous work does not require cooling oil temperature.
| specification | Unit | 100 | 250 | 315 | 500 | 630 | 1000 | |
| Nominal force | KN | 1000 | 2500 | 3150 | 5000 | 6300 | 1000 | |
| Slide of sroke | mm | 500 | 700 | 800 | 900 | 900 | 1000 | |
| MAX opening height | mm | 900 | 1100 | 1250 | 1500 | 1500 | 1600 | |
| Cushion force | KN | 250 | 400 | 630 | 1000 | 1000 | 160 | |
| Cushion Stroke | mm | 200 | 250 | 300 | 350 | 350 | 400 | |
| Slide speed | Idle stroke | mm/s | 150 | 150 | 150 | 140 | 140 | 140 |
| pressing | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | |
| Return | mm/s | 150 | 150 | 140 | 140 | 140 | 140 | |
| Cushion speed | Eject | mm/s | 40 | 40 | 40 | 40 | 40 | 40 |
| Return | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | |
| Bolster | L-R | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 |
| F-B | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 | |
| Cushion size | L-R | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 |
| F-B | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 | |
| Main motor | KW | 11 | 18.5 | 22 | 22*2 | 22*2 | 75 | |
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
