Product Details:
|
| Product Name: | 400T Frame Auto Trim Servo Hydraulic Press | Force: | 400T |
|---|---|---|---|
| Warranty: | 2 Years | Core Components: | Moto Pump PLC Other |
| System: | Servo | Fuction: | Auto Trim |
| Keywords: | Auto Trim, Servo Hydraulic Press | Advantage: | High Accuracy |
| High Light: | 400T H Frame Hydraulic Press Machine,PLC H Frame Hydraulic Press Machine,Auto Trim Servo Hydraulic Press |
||

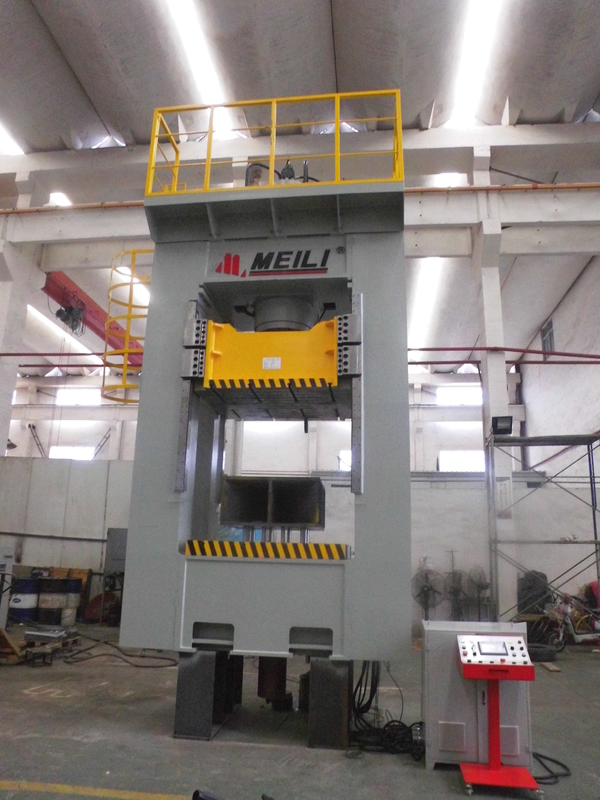

400T Frame Auto Trim Servo Hydraulic Press
Hydraulic presses of this series are used when metallic materials need forming by stretching, flanging or bending, also when nonmetallic materiales need pressing. These presses each has separated hydraulic and electric systems controlled with centralized press-buttons.
Operated manually, semi-automatically or in the mode of adjustment,they can achieve both constant-pressure processing and constant-distance processing with the pressure or distance being adjusted within the range specified.
Our custom Column Presses are available from 2-1000 tons. Each press can be equipped with hydraulic power unit and controls tailored to your specific application.
Servo Features:
1. Energy saving with high effieciency. Servo motor driving system can achieve 30%-50% energy saving.
2. Low noise. Noise can be controlled below 70 decibels.
3. Longer system life by reducing heat and the number of components.
4. Elimination of cooling systems for fluids involved in the process.
5. High accuracy, flexbility and reliability, low power consumption, less maintenance.
| specification | Unit | 100 | 250 | 315 | 500 | 630 | 1000 | |
| Nominal force | KN | 1000 | 2500 | 3150 | 5000 | 6300 | 1000 | |
| Slide of sroke | mm | 500 | 700 | 800 | 900 | 900 | 1000 | |
| MAX opening height | mm | 900 | 1100 | 1250 | 1500 | 1500 | 1600 | |
| Cushion force | KN | 250 | 400 | 630 | 1000 | 1000 | 160 | |
| Cushion Stroke | mm | 200 | 250 | 300 | 350 | 350 | 400 | |
| Slide speed | Idle stroke | mm/s | 150 | 150 | 150 | 140 | 140 | 140 |
| pressing | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | |
| Return | mm/s | 150 | 150 | 140 | 140 | 140 | 140 | |
| Cushion speed | Eject | mm/s | 40 | 40 | 40 | 40 | 40 | 40 |
| Return | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | |
| Bolster | L-R | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 |
| F-B | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 | |
| Cushion size | L-R | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 |
| F-B | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 | |
| Main motor | KW | 11 | 18.5 | 22 | 22*2 | 22*2 | 75 | |
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
