Product Details:
|
| Product Name: | 1000T H Frame Servo Hydraulic Press For Hyderogen Energy Panel | Machine Type: | H Frame |
|---|---|---|---|
| Force: | 1000T | System: | Servo |
| MOTOR POWER (KW): | 55kw | VOLTAGE: | 380V According To Your Local Voltage |
| High Light: | 1000T H Frame Servo Hydraulic Press,Servo Hydraulic Press Hyderogen Energy Panel,55kw hydraulic power press machine |
||

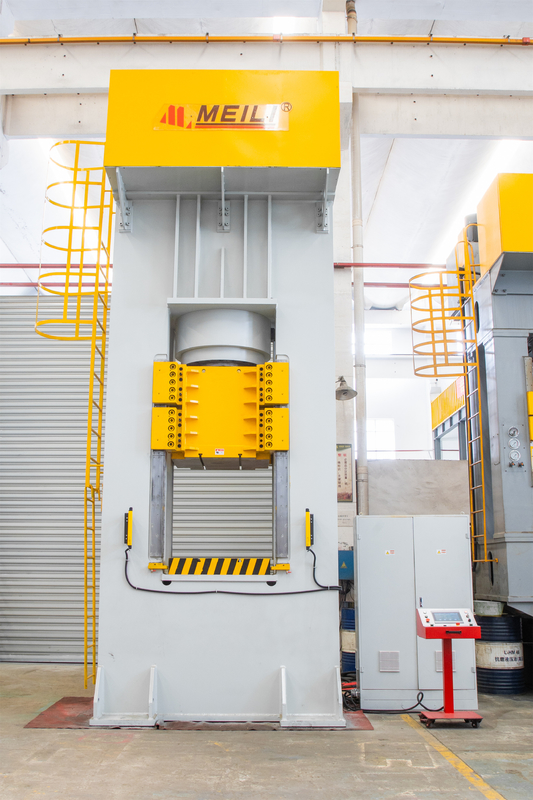

1000T H Frame Servo Hydraulic Press for Hyderogen Energy Panel
Configuration
Large parts and important parts are optimized by finite element analysis
Beams, upright columns and base are welded construction with tension bolt pre-tightening, providing the complete hydraulic press machine with high strength and high rigidity.
Employ asynchronous drive allowing for small slide lateral force
High strength alloy steel gear, high-speed herringbone gear, low-speed hardened ground spur gear
Servo Features:
1. Energy saving with high effieciency. Servo motor driving system can achieve 30%-50% energy saving.
2. Low noise. Noise can be controlled below 70 decibels.
3. Longer system life by reducing heat and the number of components.
4. Elimination of cooling systems for fluids involved in the process.
5. High accuracy, flexbility and reliability, low power consumption, less maintenance.
| specification | Unit | 100 | 250 | 315 | 500 | 630 | 1000 | |
| Nominal force | KN | 1000 | 2500 | 3150 | 5000 | 6300 | 1000 | |
| Slide of sroke | mm | 500 | 700 | 800 | 900 | 900 | 1000 | |
| MAX opening height | mm | 900 | 1100 | 1250 | 1500 | 1500 | 1600 | |
| Cushion force | KN | 250 | 400 | 630 | 1000 | 1000 | 160 | |
| Cushion Stroke | mm | 200 | 250 | 300 | 350 | 350 | 400 | |
| Slide speed | Idle stroke | mm/s | 150 | 150 | 150 | 140 | 140 | 140 |
| pressing | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | |
| Return | mm/s | 150 | 150 | 140 | 140 | 140 | 140 | |
| Cushion speed | Eject | mm/s | 40 | 40 | 40 | 40 | 40 | 40 |
| Return | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | |
| Bolster | L-R | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 |
| F-B | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 | |
| Cushion size | L-R | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 |
| F-B | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 | |
| Main motor | KW | 11 | 18.5 | 22 | 22*2 | 22*2 | 75 | |
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
