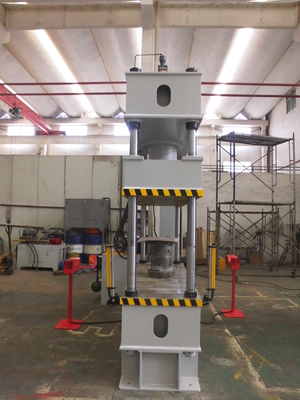

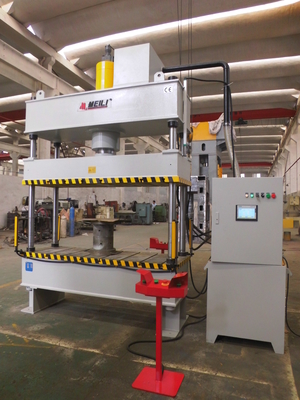

4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts

4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts
4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts 4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts 4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts

Large Image :  4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts

Description
Product Name: 100T Four Column Servo Composite Forming Hydraulic Press For Auto Parts Force: 100T
Usage: Forming System: Servo
Cnc Or Not: CNC Power(w): 15KW
Function: Forming Motor: SIEMENS
High Light:

100 Tons industrial hydraulic press

,

auto parts industrial hydraulic press

,

15KW industrial hydraulic press machine

100T Four Column Servo Composite Forming Hydraulic Press for auto parts





Four Column Hydraulic Press

  • Computer optimized design, 3-beam&4-column compact structure. With simple, economic and practical

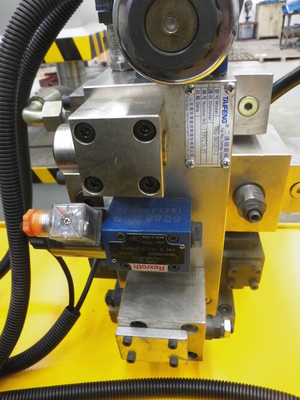

  • Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design.
  • Independent electrical control system with reliability, intuitive movement and convenient amendment
  • Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
  • Preset Stroke Forming or Preset Pressure Forming process can be selected, Pressure holding period can be preset according to requirements.



Features:

High efficiency and energy saving.
low noise, noise can be controlled at around 60 decibels.
Quick response, pressure and high repeatability.

High accuracy.



Product Information:

1. Four Columns structure and slider made of top quality steel plate and annealing process, with good rigidity and improve accuracy.

2. Guiding of slider by eight-face linear guide way, enhance the stability of moving bolster movement and high eccentric pressing force.

3. Control system: PLC + HMI (Siemens brand), refer to pressing technology requirement set the parameters on HMI such as pressure, position, hold pressure, multi-pressing, etc; Easy to operation.

4. Fulfill different speed and pressure of pressing requirement, ensures the stability of movement.

5. Intellectualization. It can provide remote diagnosis and maintenance services.



Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor



specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts 0



4 Post Servo Composite Forming 100 Tons Industrial Hydraulic Press For Auto Parts 1



FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.


Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.


Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.


Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
