Product Details:
|
| Product Name: | 1000T H Frame Servo Hydraulic Press For Hyderogen Energy Panel | Machine Type: | H Frame |
|---|---|---|---|
| Force: | 1000KN | APPLICABLE INDUSTRIES: | Home Kitchen Appliances, The Automotive Industry, Metal Products |
| MOTOR POWER (KW): | 55kw | VOLTAGE: | 380V According To Your Local Voltage |
| MAX Opening Height: | 1600mm | Cushion Stroke: | 400mm |
| High Light: | 800T servo hydraulic press,servo hydraulic press 55kw,H Frame Press Hyderogen Energy Panel |
||

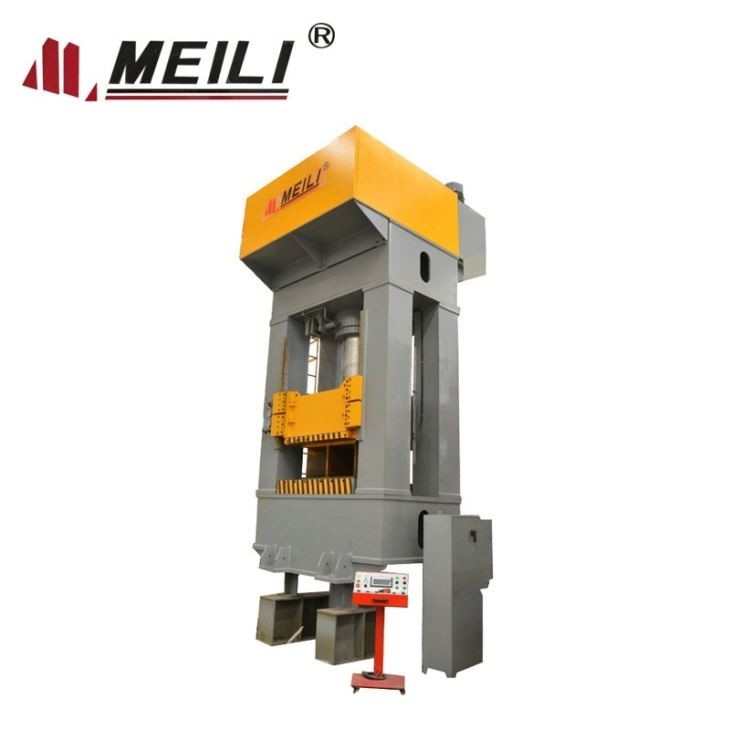

800T H Frame Servo Hydraulic Press for Hyderogen Energy Panel
Product information:
1). Energy saving and emission reduction: Hydraulic and electronic control adopt intelligent servo-saving system, saving 50-70%
2). Safety & Precision: Each machine is equipped with an infrared safety grating, which effectively protects the safety of the operator. The servo intelligent patented control system ensures that the machine’s repeat position accuracy is up to ± 0.03mm and the pressure precision is ± 1 bar.
Servo Features:
| specification | Unit | 100 | 250 | 315 | 500 | 630 | 1000 | |
| Nominal force | KN | 1000 | 2500 | 3150 | 5000 | 6300 | 1000 | |
| Slide of sroke | mm | 500 | 700 | 800 | 900 | 900 | 1000 | |
| MAX opening height | mm | 900 | 1100 | 1250 | 1500 | 1500 | 1600 | |
| Cushion force | KN | 250 | 400 | 630 | 1000 | 1000 | 160 | |
| Cushion Stroke | mm | 200 | 250 | 300 | 350 | 350 | 400 | |
| Slide speed | Idle stroke | mm/s | 150 | 150 | 150 | 140 | 140 | 140 |
| pressing | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | |
| Return | mm/s | 150 | 150 | 140 | 140 | 140 | 140 | |
| Cushion speed | Eject | mm/s | 40 | 40 | 40 | 40 | 40 | 40 |
| Return | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | |
| Bolster | L-R | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 |
| F-B | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 | |
| Cushion size | L-R | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 |
| F-B | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 | |
| Main motor | KW | 11 | 18.5 | 22 | 22*2 | 22*2 | 75 | |
FAQ
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
