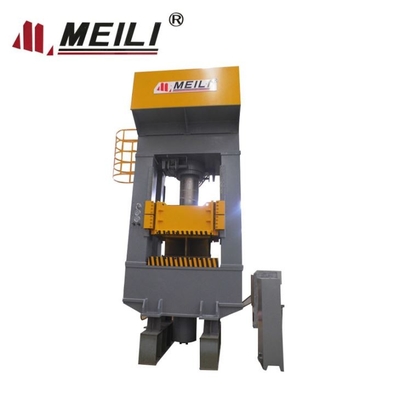

500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed

500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed
500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed
500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed 500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed

Large Image :  500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Model Number: hps-1000s
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T
Supply Ability: 80 Sets per Month

500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed

Description
Product Name: 500Ton H Frame Servo Hydraulic Press For Hyderogen Energy Panel Machine Type: H Frame
Force: 5000KN MOTOR POWER (KW): 55kw
Slide Of Sroke: 900mm Cushion Force: 1000KN
High Light:

800Ton h frame hydraulic press

,

h frame hydraulic press 70mm/S

,

h type hydraulic press ISO9001

1000T H Frame Servo Hydraulic Press for Hyderogen Energy Panel





Features:

1. The new generation of numerical control hydraulic press, the frame eight face guiding structure. Suitable technology, hot pressing for automotive interior parts.
2. Suitable for automobile roof, trunk, seat back-to-back, clothes rack, wheel shield, sunshade, hood heat insulation cushion and other parts.
3. Servo motor with high precision oil pump drive segment control pressure, speed, exhaust.
4. PLC programming, touch screen display, control.
5. Displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touchscreen.
6. Provide remote network services, machine automatic alarm, prompt failure and maintenance.
7. It is suitable for trimming and compound forming of automotive interior parts.



Specification

specification Unit 100 250 315 500 630 1000
Nominal force KN 1000 2500 3150 5000 6300 1000
Slide of sroke mm 500 700 800 900 900 1000
 MAX opening height mm 900 1100 1250 1500 1500 1600
Cushion force KN 250 400 630 1000 1000 160
Cushion Stroke mm 200 250 300 350 350 400
Slide speed Idle stroke mm/s 150 150 150 140 140 140
pressing mm/s 10-15 10-15 10-15 10-15 10-15 10-15
Return mm/s 150 150 140 140 140 140
 Cushion speed  Eject mm/s 40 40 40 40 40 40
 Return mm/s 70 70 70 70 70 70
 Bolster  L-R mm 1000 1000 1200 1400 1500 1800
 F-B mm 1000 1000 1200 1400 1500 1800
 Cushion size L-R mm 700 700 800 1000 1000 1200
 F-B mm 700 700 800 1000 1000 1200
 Main motor KW 11 18.5 22 22*2 22*2 75



500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed 0



500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed 1



500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed 2



500Ton H Frame Hydraulic Press CE ISO9001 70mm/S Return Cushion Speed 3

FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
