Product Details:
|
| Product Name: | Double Action Four Column Hydraulic Press Machine | Type: | Four Column |
|---|---|---|---|
| Voltage: | 380V/220V Optional,Customized,220V/380V(According | System: | Normal |
| Certification: | CE ISO | Dimension(l*w*h): | Machine Size |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support |
| High Light: | Four Column Hydraulic Press Machine 380V 220V,Double Action Four Column Hydraulic Press Machine,4 hydraulic press machine CE ISO |
||

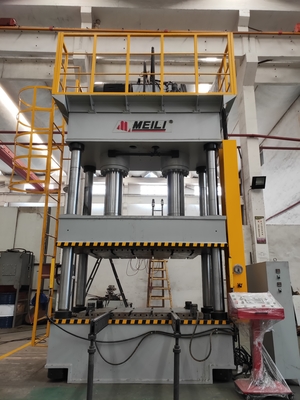

Double Action Four Column Hydraulic Press Machine
Product Application
1. Stamping, forming, shallow drawing, die spotting, molding and blanking etc. of metal and none metal parts;
2. Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments, lock parts and hardware etc.
Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor
Our service
1. QC and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service;
5. Providing first-class after-sales services to the customers.
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 |
|
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production workshop for
four columns hydraulic press,and has a number of patented technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,
production capacity is very strong, conventional models try to ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
