Product Details:
|
| Product Name: | China Frame Servo Composite Hydraulic Press | Force: | 1000KN |
|---|---|---|---|
| Slide Of Sroke: | 1000mm | MAX Opening Height: | 1600mm |
| Cushion Force: | 160KN | System: | Servo |
| High Light: | 1000KN H Frame Hydraulic Press Machine CE,H Frame Hydraulic Press Machine ISO9001,h type power press 600T |
||

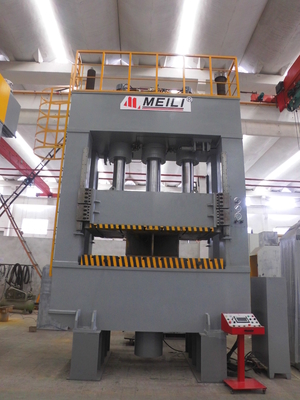

China Frame Servo Composite Hydraulic Press
1. The machine body is welded of quality steel sheet and reliability of precision of the machine ;
2. In order to gurantee the machine running in stable and smooth , adopt the design of symmetrical two side boards with balancer ;
3. The precision of mold adjusting up to 0.1mm , safety, reliable and convenient ;
4. Crank, gear, connectbar are oxidized hardening and milled, having super comprehensive mechanical performancce and durable function.
Our custom Column Presses are available from 2-1000 tons. Each press can be equipped with hydraulic power unit and controls tailored to your specific application.
Hydraulic H frame presses are widely applied to the production of automobile, agricultural machinery, electrical machinery, household appliances, light industry, bearings, locomotives, vehicles, aviation, and weapons among many other industrial sectors.
| specification | Unit | 100 | 250 | 315 | 500 | 630 | 1000 | |
| Nominal force | KN | 1000 | 2500 | 3150 | 5000 | 6300 | 1000 | |
| Slide of sroke | mm | 500 | 700 | 800 | 900 | 900 | 1000 | |
| MAX opening height | mm | 900 | 1100 | 1250 | 1500 | 1500 | 1600 | |
| Cushion force | KN | 250 | 400 | 630 | 1000 | 1000 | 160 | |
| Cushion Stroke | mm | 200 | 250 | 300 | 350 | 350 | 400 | |
| Slide speed | Idle stroke | mm/s | 150 | 150 | 150 | 140 | 140 | 140 |
| pressing | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | |
| Return | mm/s | 150 | 150 | 140 | 140 | 140 | 140 | |
| Cushion speed | Eject | mm/s | 40 | 40 | 40 | 40 | 40 | 40 |
| Return | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | |
| Bolster | L-R | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 |
| F-B | mm | 1000 | 1000 | 1200 | 1400 | 1500 | 1800 | |
| Cushion size | L-R | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 |
| F-B | mm | 700 | 700 | 800 | 1000 | 1000 | 1200 | |
| Main motor | KW | 11 | 18.5 | 22 | 22*2 | 22*2 | 75 | |
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
