Product Details:
|
| Product Name: | 10ton C Frame Electric Servo Press | ||
|---|---|---|---|
| High Light: | 10ton C frame servo press,C frame servo press 750mm,servo Electric press ISO9001 |
||

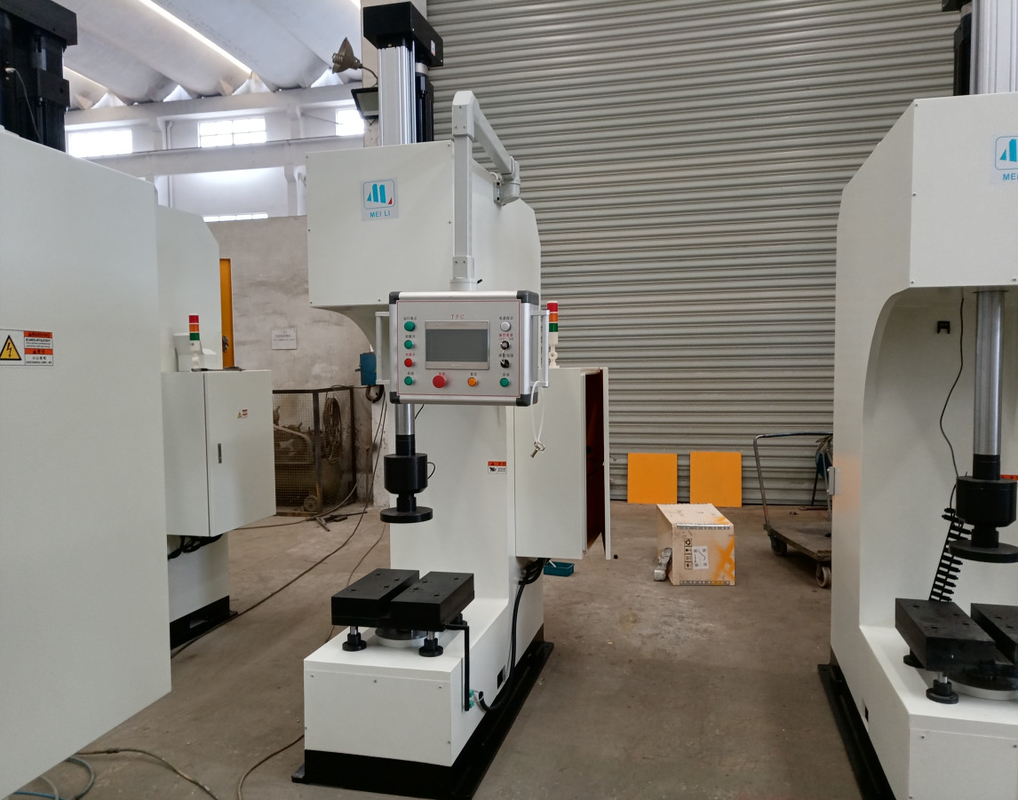

10ton C frame Electric servo press
Servo-electric presses offers a low-maintenance alternative to traditional hydraulic systems while maintaining the accuracy and precision your application requires. With models ranging from 1,000 lbf – 100,000 lbf (0.5 – 50 tons), presses offer the highest tonnage capacity of any electro-mechanical press available on the market today. Actuator size, frame style, dwell time, safety guarding, and more can be configured to meet your operational needs.
Servo-driven presses use an electric actuator in lieu of a hydraulic system to precisely control slide motion throughout the stroke. Eliminating the hoses, pumps, and hydraulic oil improves cleanliness, energy efficiency, and operator safety while lowering operational and maintenance costs. Learn more about the benefits of servo-electric presses.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
