Product Details:
|
| Product Name: | High Accuracy 10T Electric Servo Press | Usage: | Assembly Press |
|---|---|---|---|
| Warranty: | 0-80mm/s | After Warranty Service: | 0-15mm/s |
| Stroke Of Slider: | 350mm | System: | Servo |
| Cnc Or Not: | CNC | Material: | Steel Material |
| High Light: | 10T small servo press,small servo press 220V,servo electric press 380V |
||
10T Small Servo Press 220V 380V High Accuracy 0.01mm Motor Industry

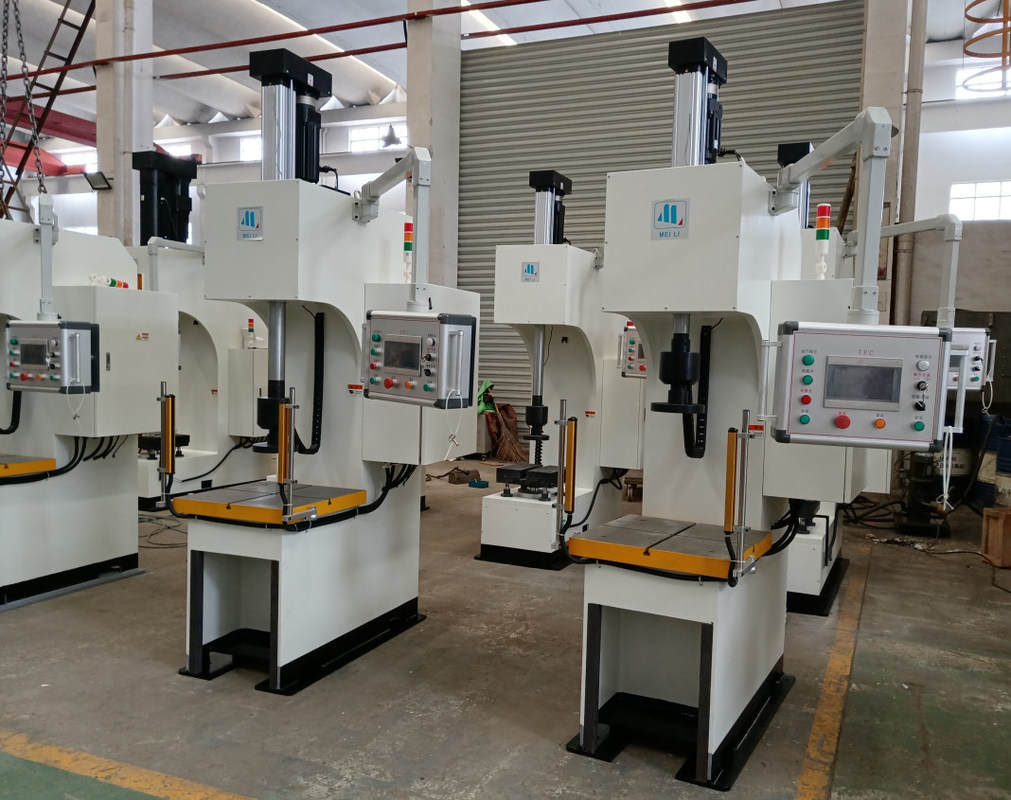

High accuracy 10T Electric servo press
1). Stable & Durable: The frame adopts the frame structure of the whole machine, and the slider adopts precision guide rails to run. It is resistant to shock and side pressure, and the whole machine is stable, precise and durable. It is suitable for blanking, forming, extrusion and other process uses.

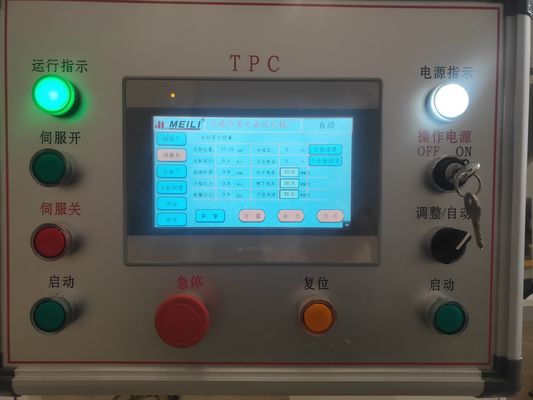

2). Easy Maintenance: The whole machine according to different functional modes, designed into a modular structure, easy disassembly, general fault can be viewed directly through the touch screen, easy maintenance.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
