Product Details:
|
| Product Name: | CE Compliance Electric Servo Hydraulic Press | Usage: | Assembly Press |
|---|---|---|---|
| Nominal Force: | 3T | Max Daylight: | 350mm |
| Warranty: | 200mm | Material: | Steel Material |
| Voltage: | 220V/380V(According To Requirement) | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| High Light: | CE servo hydraulic press,servo hydraulic press 220V/380V,servo driven press CNC |
||

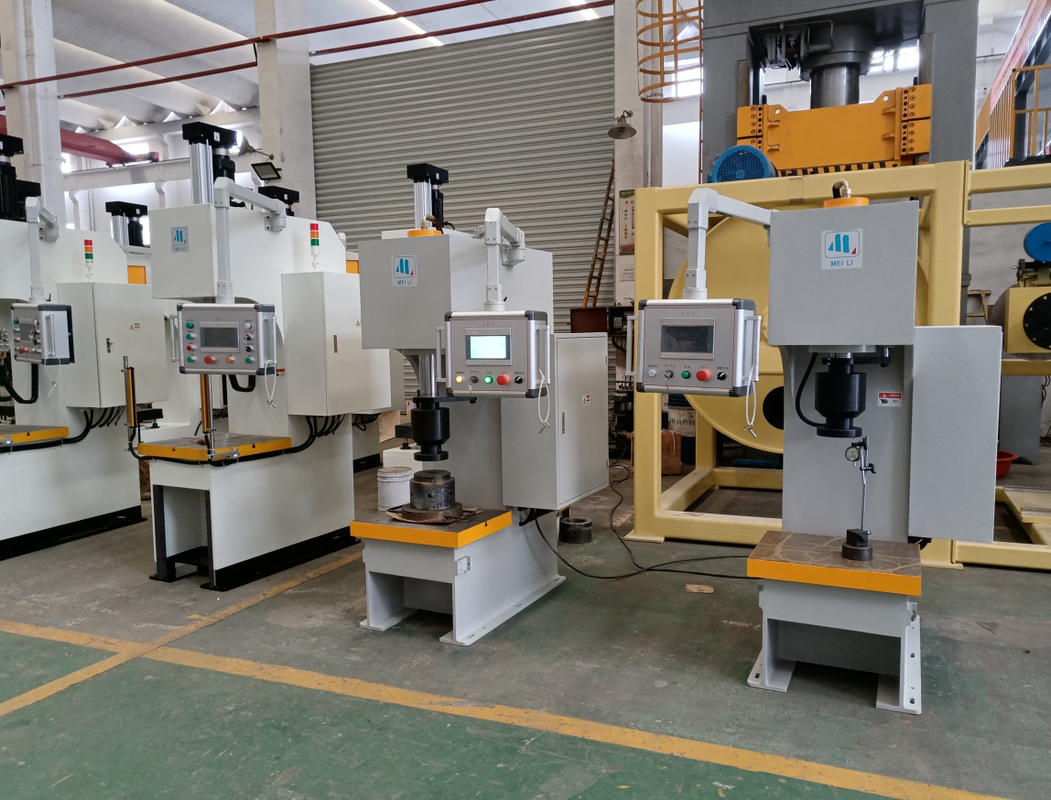

CE Compliance Electric servo hydraulic press

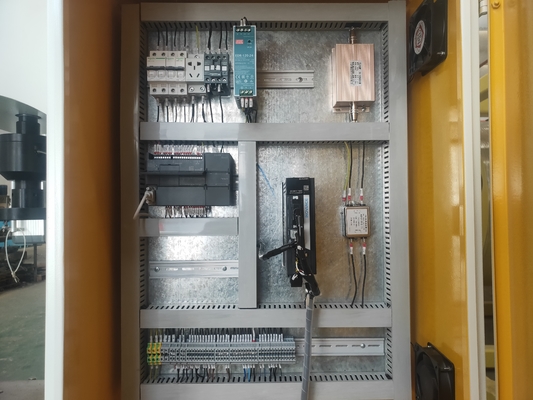

1. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds;
2. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA;

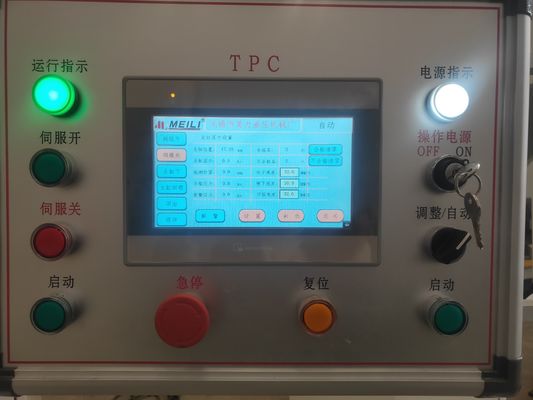

3. Dual control you can select to use:
# Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
# Movable single-hand pedal switch
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
