Product Details:
|
| Product Name: | 20ton Electric Servo Hydraulic Press | Unit: | 2T |
|---|---|---|---|
| After Warranty Service: | 300mm | Voltage: | 150mm |
| System: | Servo | Cnc Or Not: | CNC |
| Material: | Steel Material | Warranty: | 2 Years |
| High Light: | 20ton Electric Servo Press,Electric Servo Press CNC,hydraulic servo press 220V 380V |
||

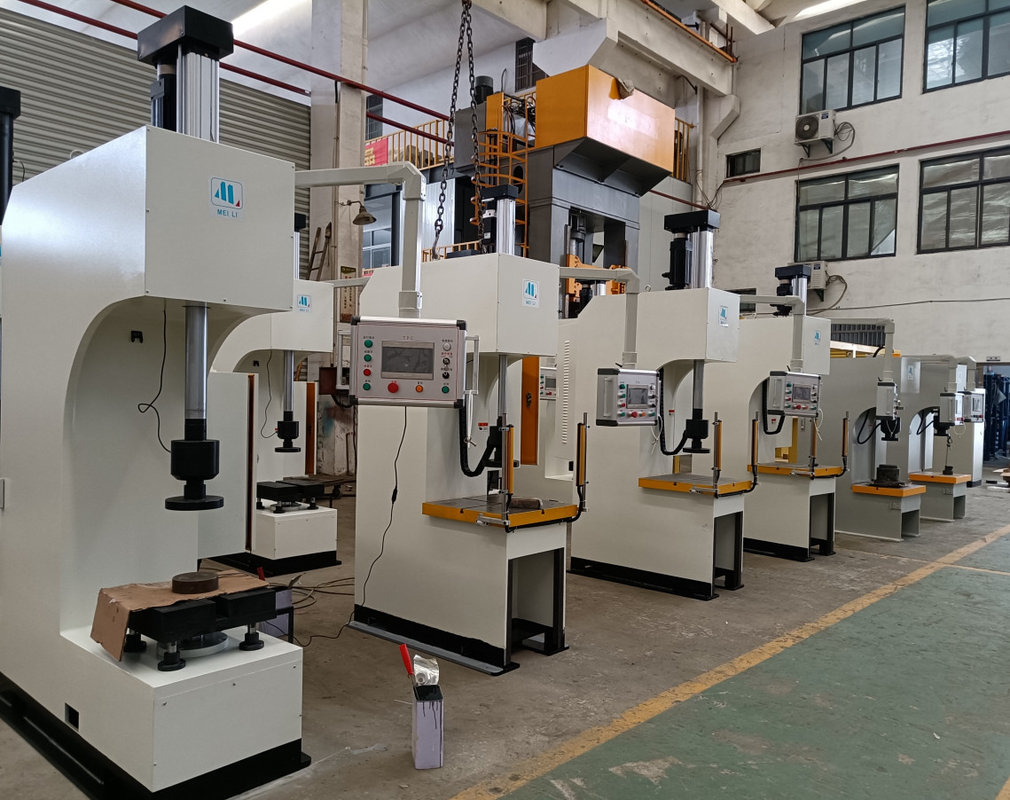

10ton Electric servo press for sale
1. Table type miniaturized C-type fuselage, pure steel plate integral welding, firm and reliable, easy to remove and transport;
2. It adopts the precision servo integrated system developed by our company and the 10 inch display program control of man-machine interface;
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation
Product Features
1. Low impact, low noise, energy saving.

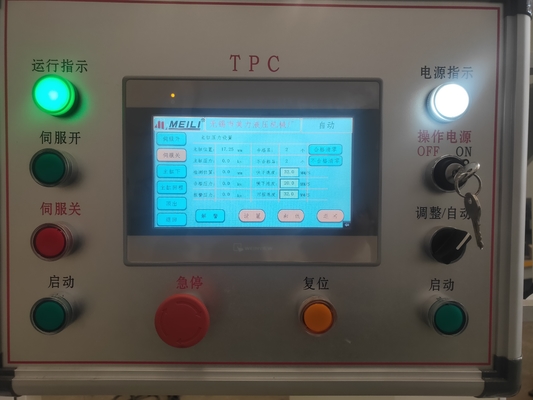

2. Touch screen setting and display the displacement and pressure.
3. Eletrical system controlled by PLC.
4. The accuracy of the the displacement can be reached 0.01mm. The accuracy of the pressure can be reached 1kg.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
Contact Person: mark
Tel: 13921276259
