Product Details:
|
| Product Name: | 10ton Electric Servo Hydraulic Press | Unit: | 0.5T |
|---|---|---|---|
| Max Daylight: | 300mm | After Warranty Service: | 120mm |
| Cnc Or Not: | CNC | Material: | Steel Material |
| Voltage: | 220V/380V(According To Requirement) | Warranty: | 2 Years |
| High Light: | 10ton hydraulic press 0.01mm,10ton hydraulic press,servo Electric press 11KW |
||

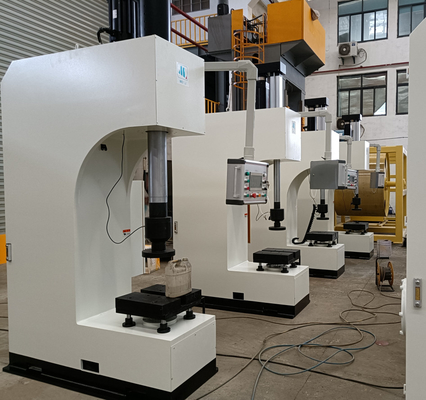

10ton Electric servo hydraulic press
1. Displacement + pressure two pressing modes are available, real-time curve analysis and precise control;
2. It is suitable for testing, precision pressing, forming and riveting of micro and small products;
3. High efficiency, safe and convenient operation, low vibration and low noise;
4. It can be operated on a single machine or connected to an automatic assembly line station.
Specification
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
