20KW Custom Hydraulic Electric Servo Press 750mm Operation Height

20KW Custom Hydraulic Electric Servo Press 750mm Operation Height
20KW Custom Hydraulic Electric Servo Press 750mm Operation Height 20KW Custom Hydraulic Electric Servo Press 750mm Operation Height

Large Image :  20KW Custom Hydraulic Electric Servo Press 750mm Operation Height

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

20KW Custom Hydraulic Electric Servo Press 750mm Operation Height

Description
Product Name: Custom Electric Servo Hydraulic Press After Warranty Service: 10T
Max Daylight: 500mm Warranty: 0-80mm/s
System: Servo Cnc Or Not: CNC
Material: Steel Material Voltage: 220V/380V(According To Requirement)
High Light:

20KW Electric Servo Press

,

Electric Servo Press 750mm

,

servo hydraulic press 220V 380V

Custom Electric servo hydraulic press

Processing customization process
1. Enquiry: You need to provide the key parameters of the equipment, such as effective travel, speed, accuracy, load, etc
2. Design: According to your parameter requirements, process requirements to design a detailed quotation.
3. Production and processing: After you confirm the order and arrange the deposit to us, we will arrange the workshop and start production.
4. After-sale-service: We will provide you with remote after-sales service, including video guidance, online guidance, etc.
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation


Product Features
1. Low impact, low noise, energy saving.

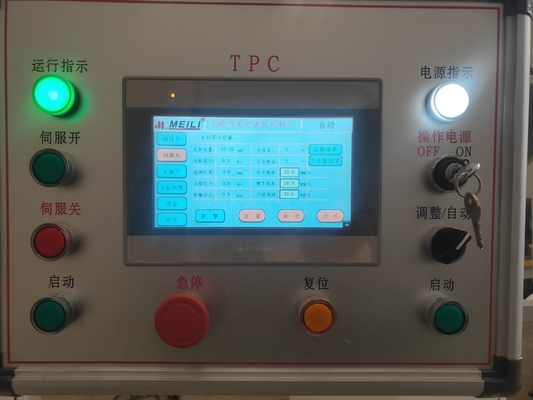

2. Touch screen setting and display the displacement and pressure.
3. Eletrical system controlled by PLC.
4. The accuracy of the the displacement can be reached 0.01mm. The accuracy of the pressure can be reached 1kg.

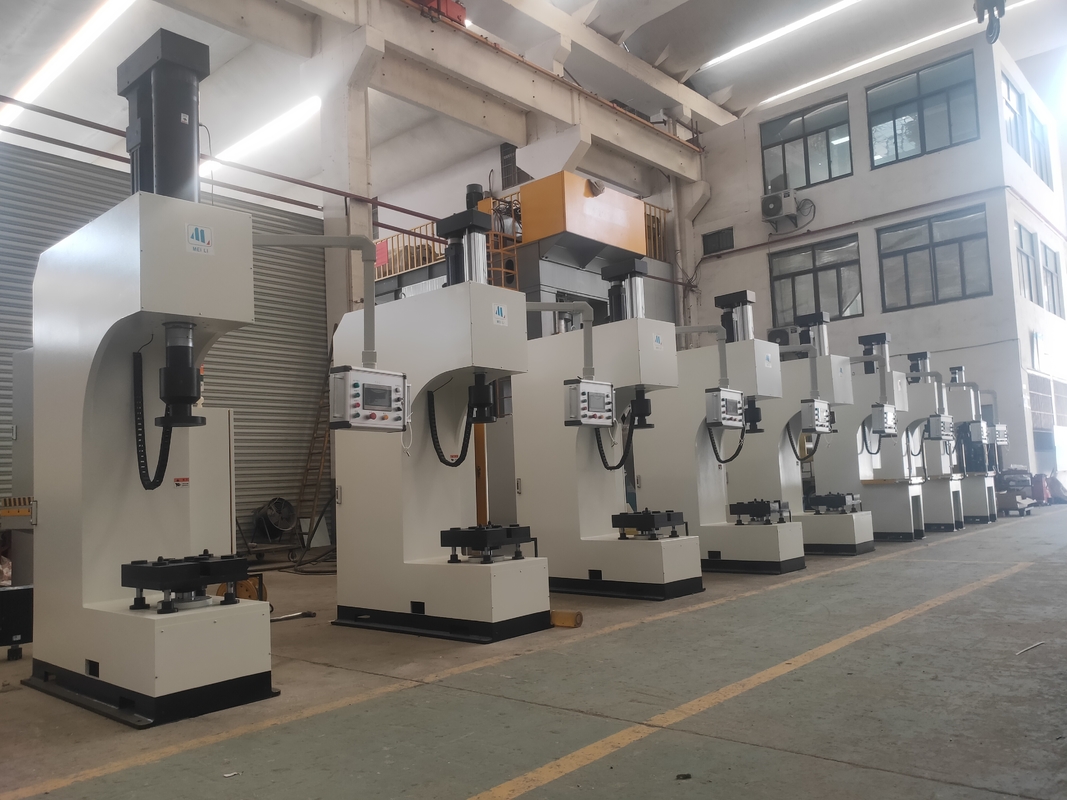

Different shapes of servo press machine
We have different shapes of servo press fit machine, which can be customized according to customer's requirements. We will provide drawings according to customer's requirements and follow up customers to confirm the details of the machine.



DescriptionUnit0.5T1T2T3T4T5T8T10T20T
Nominal ForceT0.5T1T2T3T4T5T8T10T20T
Table sizeL-Rmm300300400400400500500500600
F-Bmm250250320320320440440440500
Max daylightmm300300300350400450500500500
Stroke of slidermm120120150200250250300350350
Down speedmm/s0-80
Working speedmm/s0-15
Return speedmm/s0-80
Throat Depthmm120120160160180250250250280
Operation Heightmm750750750750750750750750750
Powder of motorKW1223457.81120


20KW Custom Hydraulic Electric Servo Press 750mm Operation Height 0

20KW Custom Hydraulic Electric Servo Press 750mm Operation Height 1
