Product Details:
|
| Product Name: | High Quality Electric Servo Hydraulic Press | Voltage: | 8T |
|---|---|---|---|
| System: | 500mm | After Warranty Service: | 300mm |
| Usage: | Assembly Press | Cnc Or Not: | CNC |
| Material: | Steel Material | Warranty: | 2 Years |
| High Light: | 0.5Ton servo motor press machine,servo motor press machine 220V 380V,Hydraulic Servo press 1KW |
||

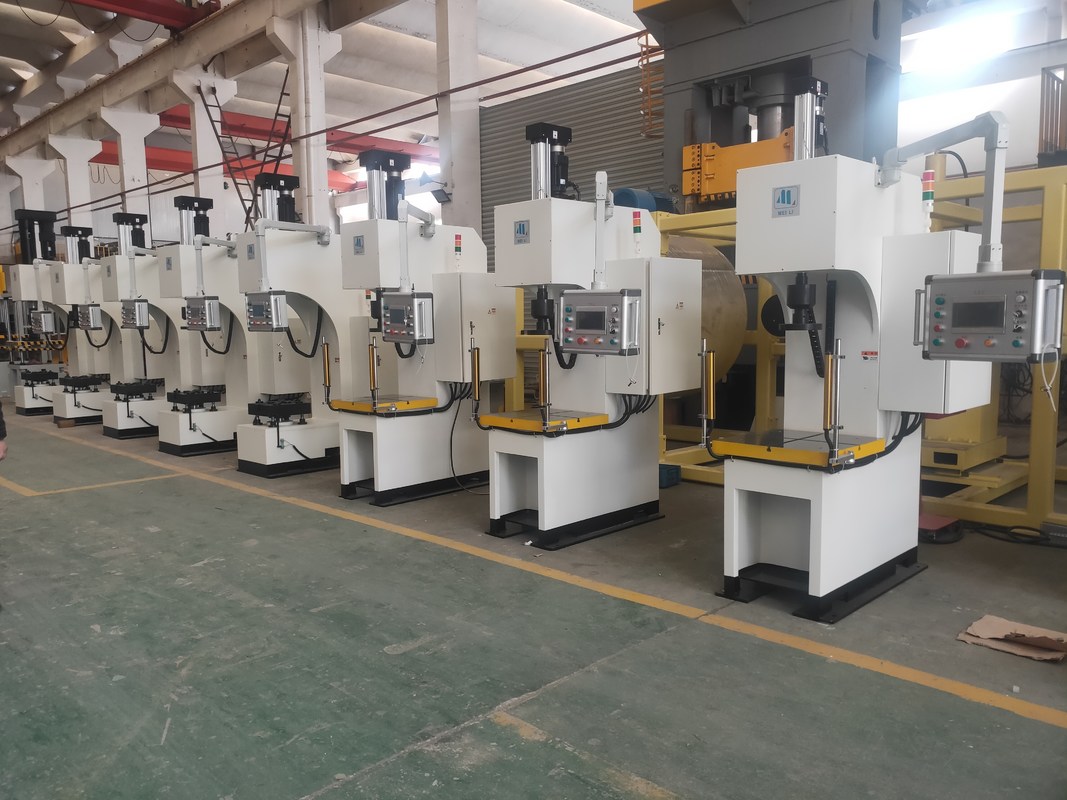

High quality Electric servo hydraulic press
Features:
1. High efficiency and energy saving, the power consumption is 30% -50% less energy than ordinary motors.
2. Low noise, the noise can be controlled at about 60 decibels.
3. The working position, speed and pressure can be adjusted steplessly.
4. Quick response, high pressure and position repeat accuracy.
5. High efficiency, multiple protections inside, and extremely low failure rate.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
