Product Details:
|
| Product Name: | Electric Hydraulic Press For Press Fitting | After Warranty Service: | 0-80mm/s |
|---|---|---|---|
| Stroke Of Slider: | 200mm | Max Daylight: | 350mm |
| System: | Servo | Cnc Or Not: | CNC |
| Unit: | 3T | Usage: | Assembly Press |
| High Light: | Hydraulic Electric Servo Press,Electric Servo Press For Press Fitting,Servo Press machine 0.01mm |
||

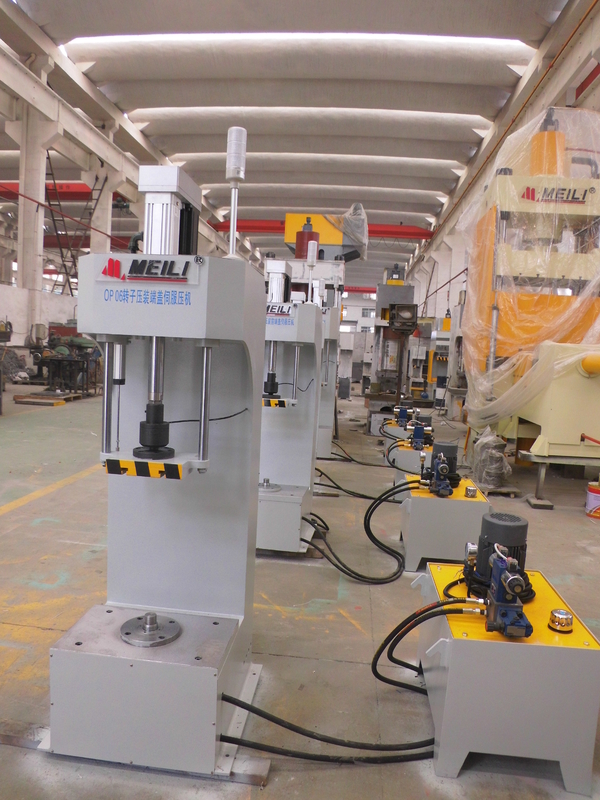

Electric hydraulic press for press fitting
Product description:
Servo hydraulic press is an energy-saving and efficient hydraulic press which uses servo motor to drive main transmission oil pump, reduce control valve circuit and control the sliding block of hydraulic press.
It is mainly composed of frame, head, worktable, servo motor, push rod, pressing plate and control switch. The machine head is fixed on the cantilever at the upper part of the frame, the servo motor is installed vertically on the machine head, the lower end of the servo motor is coaxially connected with the push rod, the lower end of the push rod is installed with a pressing plate, the lower end of the servo motor is coaxially connected with the push rod through a ball screw, and a control switch is symmetrically installed on the outside of the workbench corresponding to the pressing plate.
The control switch is a linked two hand start button.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
