Steel Electric Hydraulic Press Machine 220V 380V Accuracy 0.01mm

Description
Product Name: Electric Hydraulic Press For Sale Unit: 2T
Table Size: 400mm L-R Cnc Or Not: CNC
After Warranty Service: 150mm Max Daylight: 300mm
Voltage: 220V/380V(According To Requirement) Warranty: 2 Years
High Light:

Steel electric hydraulic press

,

electric hydraulic press 220V 380V

,

electric hydraulic press machine 0.01mm

Electric hydraulic press for sale



Product Characteristics

1. The fuselage adopts the traditional bow structure, which is similar to the traditional mechanical punch, with simple and compact structure, small floor area and convenient operation.

2. The master cylinder is a piston type oil cylinder with a fast cylinder inside, which can realize high-speed downward and slow pressing action. Improve production efficiency.

3. The oil cylinder is of upper oil cylinder type. When the stamping slider works, it is pressed from top to bottom, the lower die is stationary, and the upper die is pressed.

4. The upper part of the fuselage is equipped with precision positioning device, mechanical dead limit and servo adjustment device.

5. The precision positioning device is driven by servo motor. The positioning accuracy is 0.01mm.



Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20

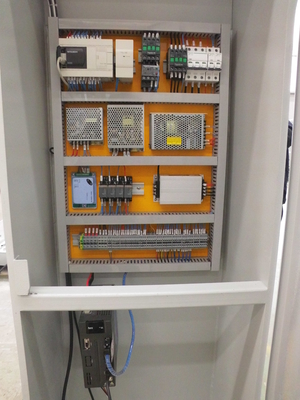

Steel Electric Hydraulic Press Machine 220V 380V Accuracy 0.01mm 0

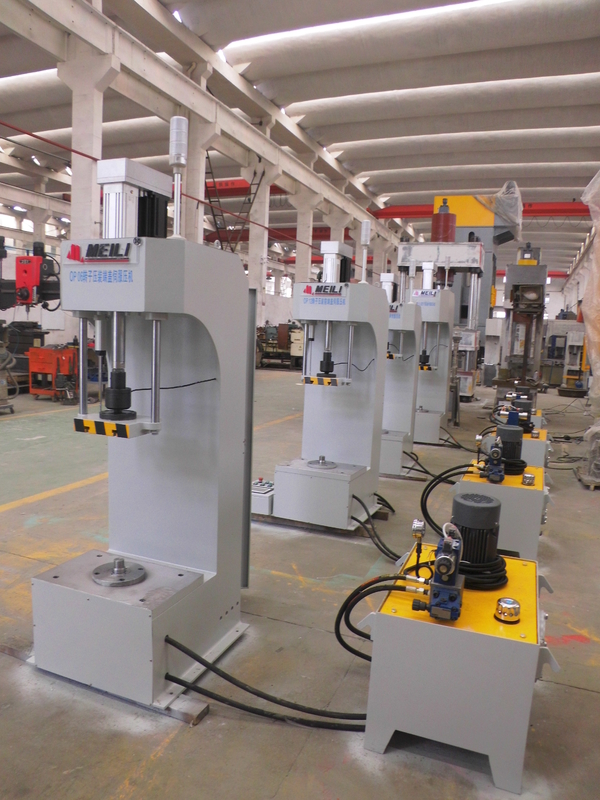

Steel Electric Hydraulic Press Machine 220V 380V Accuracy 0.01mm 1
