CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC

CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC
CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC

Large Image :  CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC

Description
Product Name: Servo Driven Electric Press Stroke Of Slider: 120mm
Max Daylight: 300mm After Warranty Service: 0-80mm/s
Usage: Assembly Press Unit: 1T
Cnc Or Not: CNC Voltage: 220V/380V(According To Requirement)
High Light:

CNC servo driven press

,

servo driven press 220V 380V

,

Electric Servo Press PLC

Servo driven Electric press

1. The electrical system adopts PLC + servo system + touch screen + proportional drive, and cooperates with the proportional hydraulic system to issue instructions according to the process requirements to complete the process cycle action of the machine.

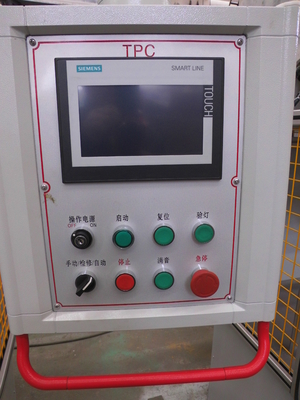

2. Friendly man-machine interface, 200 groups of parameter programs can be accessed arbitrarily.

3. The position is located by the electronic ruler, and the travel position can be set arbitrarily. High precision positioning adopts mechanical dead limit. The positioning accuracy is theoretically ± 0.0mm and the actual positioning accuracy is 0.01-0.02MM.

4. The pressure is detected by the pressure sensor, and the machine pressure can be set arbitrarily.

5. Automatic feeding of mobile worktable..



Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20


CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC 0

CNC Servo Driven Press Electric Servo Press Steel 220V 380V PLC 1
