Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry

Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry
Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry

Large Image :  Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry

Description
Product Name: Electric Servo Press Unit: 0.5T
Nominal Force: 0.5T L-R: 300mm L-R
After Warranty Service: 300mm Cnc Or Not: CNC
Material: Steel Material Voltage: 220V/380V(According To Requirement)
High Light:

electric punch press

,

electric punch press

,

electric power press

Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry

Electric servo press

Precision servo electronic presses work on the principle that the servo motor drives high-precision ball screws for precision pressure assembly and can be used in pressure assembly operations. Full-process closed-loop control of press-fit force and press-in depth for precise press-fit of online quality management.



Widely used in: automotive industry: engine, gearbox assembly press (input shaft, output shaft, differential, off-shell cylinder cover, variable cylinder liner, oil seal, etc.), steering gear assembly press (gear, pin, etc.) ), drive shaft assembly press, gear box assembly press, brake disc assembly press, etc.; motor industry: micro-motor assembly press (spindle, housing, etc.), motor assembly press (bearing, spindle, etc.); electronics industry : circuit board assembly press-fit (plug-in, etc.), electronic components press-fit; home appliance industry: home appliance parts press, home appliance parts riveting, etc.; machinery industry: mechanical parts press-fit, automated assembly line, wearing parts life test; Other industries: other occasions that require precise control of press-fit displacement and press-fit force.


Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20

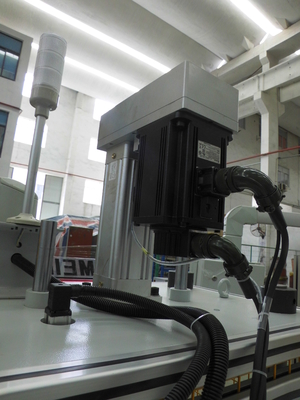

Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry 0

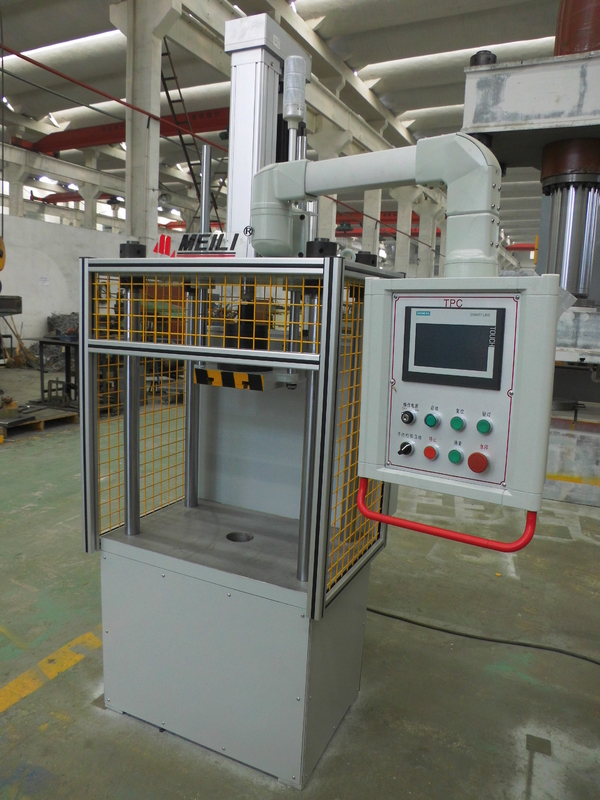

Assembly Electric Punch Press CNC 0.01mm Accuracy Automotive Industry 1
