Product Details:
|
| Product Name: | Electric Servo Press Factory In China | Down Speed: | 0-80mm/s |
|---|---|---|---|
| Warranty: | 0-15mm/s | After Warranty Service: | 0-80mm/s |
| Usage: | Assembly Press | System: | Servo |
| Cnc Or Not: | CNC | Voltage: | 220V/380V(According To Requirement) |
| High Light: | Electric Servo Press 0-80mm/S,Electric Servo Press 750mm,2Ton servo driven press |
||

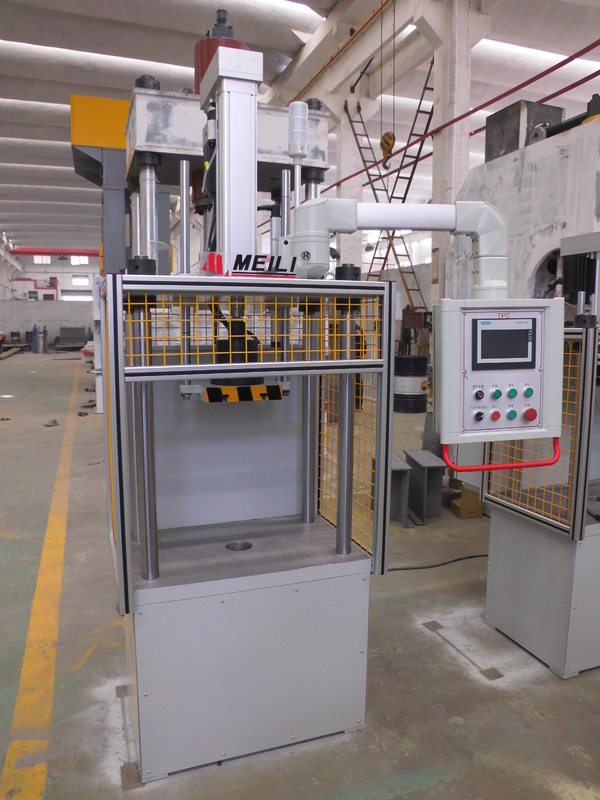

2Ton Electric Servo Press CE ISO9001 0-80mm/S 750mm Operation Height
PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds;
The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA;
Dual control you can select to use:
# Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
# Movable single-hand pedal switch
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
