20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel

20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel
20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel 20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel

Large Image :  20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel

Description
Product Name: Electric Servo Presses Supplier In China Unit: 20T
Nominal Force: 20T Cnc Or Not: 500mm
After Warranty Service: 350mm Material: Steel Material
Voltage: 220V/380V(According To Requirement) Warranty: 2 Years
High Light:

20T servo electric press

,

750mm servo hydraulic press

,

servo hydraulic press machinery industry

20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel



Product Features
1. Low impact, low noise, energy saving.

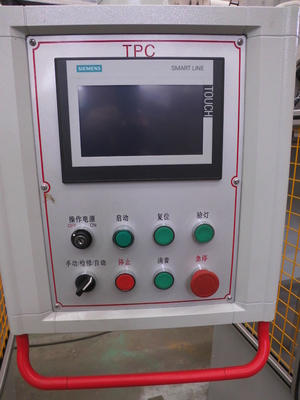

2. Touch screen setting and display the displacement and pressure.
3. Eletrical system controlled by PLC.
4. The accuracy of the the displacement can be reached 0.01mm. The accuracy of the pressure can be reached 1kg.

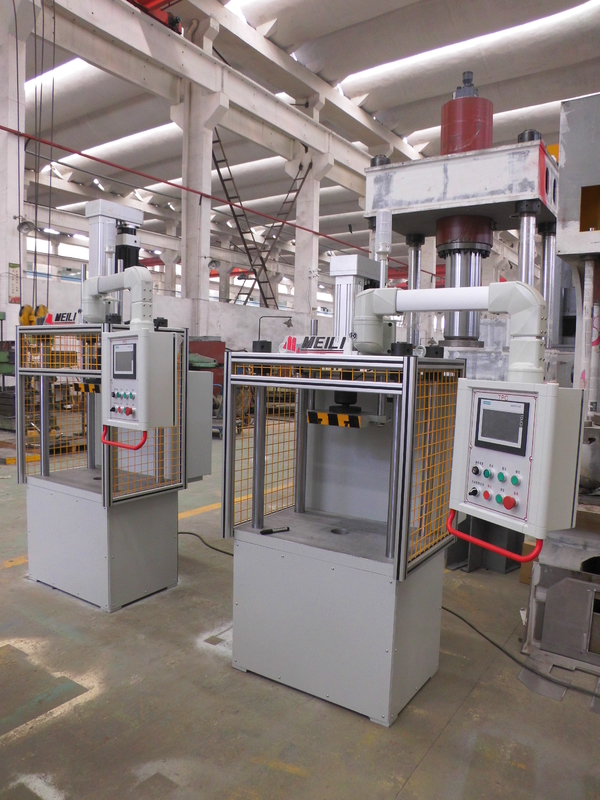

C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting.



It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.





Description Unit 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Nominal Force T 0.5T 1T 2T 3T 4T 5T 8T 10T 20T
Table size L-R mm 300 300 400 400 400 500 500 500 600
F-B mm 250 250 320 320 320 440 440 440 500
Max daylight mm 300 300 300 350 400 450 500 500 500
Stroke of slider mm 120 120 150 200 250 250 300 350 350
Down speed mm/s 0-80
Working speed mm/s 0-15
Return speed mm/s 0-80
Throat Depth mm 120 120 160 160 180 250 250 250 280
Operation Height mm 750 750 750 750 750 750 750 750 750
Powder of motor KW 1 2 2 3 4 5 7.8 11 20


20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel 0

20T 750mm Electric Servo Hydraulic Press Machinery Industry Steel 1
