Product Details:
|
| Product Name: | Electric Servo Presses For Sale | Usage: | Assembly Press |
|---|---|---|---|
| After Warranty Service: | 0-80mm/s | Working Speed: | 0-15mm/s |
| Warranty: | 0-80mm/s | Cnc Or Not: | CNC |
| Material: | Steel Material | Voltage: | 220V/380V(According To Requirement) |
| High Light: | Electric Servo Press ISO9001,Electric Servo Press 220V 380V,servo driven press MEILI |
||

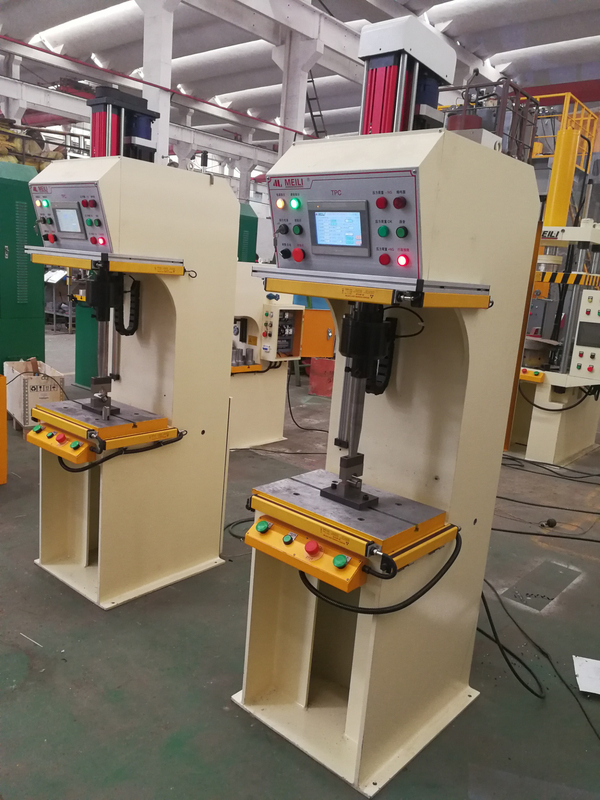

Electric servo presses for sale
Product Features
1. Typical structure design,good rigidity;
2. All the machine parts are installed inside of the machine body ; small footprint,neat and beautiful appearance ;
3. Machine stroke and pressure could be adjusted in the prescribed scope;
4. With optional attachments and functions;
5. Correcting worktable;
6. With the pressure-maintaining function;
7. With ejection or hydraulic cushion function;
8. With photo-electric safety device.
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
