Product Details:
|
| Product Name: | Electric Servo Presses Manufacturer In China | Voltage: | 220V/380V(According To Requirement) |
|---|---|---|---|
| Usage: | Assembly Press | System: | Servo |
| Cnc Or Not: | CNC | Material: | Steel Material |
| Nominal Force: | 3T | Max Daylight: | 350mm |
| High Light: | 3tons Electric Servo Press,Electric Servo Press 0-15mm/S,servo press machine 3KW |
||

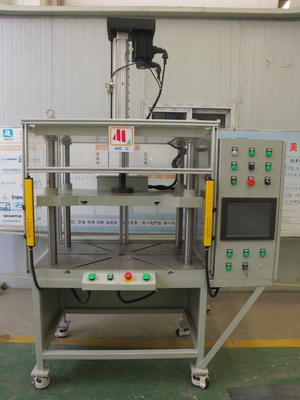

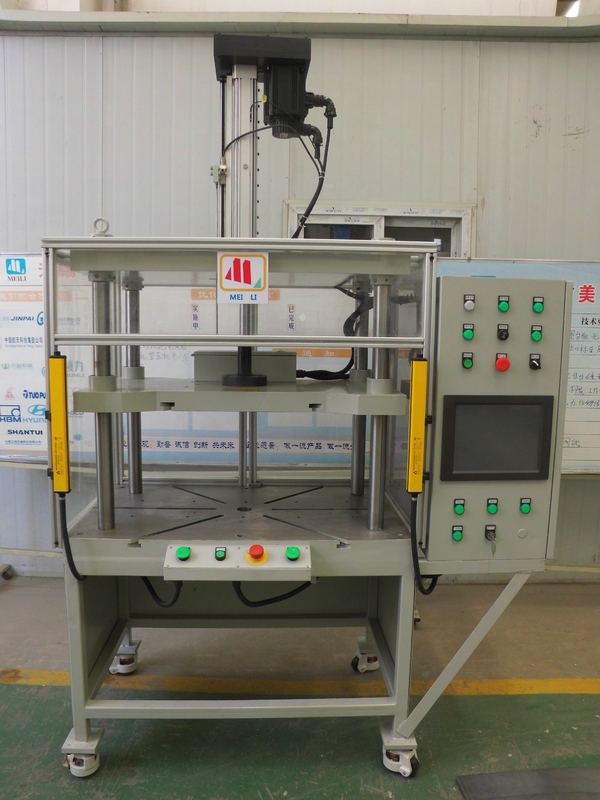

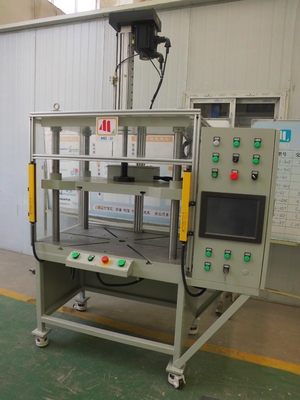

Electric servo presses manufacturer in China
1. Friendly man-machine interface, 200 groups of parameter programs can be accessed arbitrarily.
2. The position is located by the electronic ruler, and the travel position can be set arbitrarily. High precision positioning adopts mechanical dead limit. The positioning accuracy is theoretically ± 0.0mm and the actual positioning accuracy is 0.01-0.02MM.
3. The pressure is detected by the pressure sensor, and the machine pressure can be set arbitrarily.
4. Automatic feeding of mobile worktable..
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
