Product Details:
|
| Product Name: | Electric Cylinder High Precision Servo Presses | After Warranty Service: | 600mm L-R |
|---|---|---|---|
| Warranty: | 350mm | Voltage: | 220V/380V(According To Requirement) |
| Usage: | Assembly Press | System: | Servo |
| Cnc Or Not: | CNC | Material: | Steel Material |
| High Light: | 20T electric hydraulic press,electric hydraulic press High Precision,servo hydraulic press 220V 380V |
||

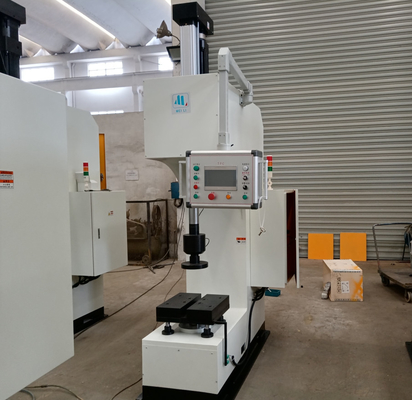

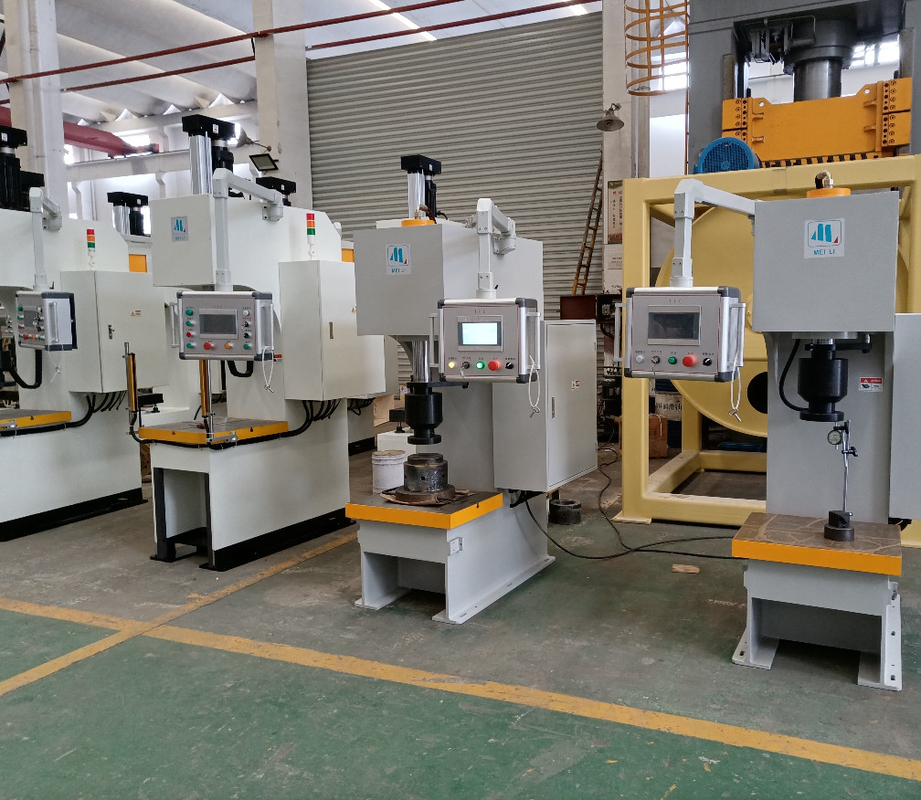

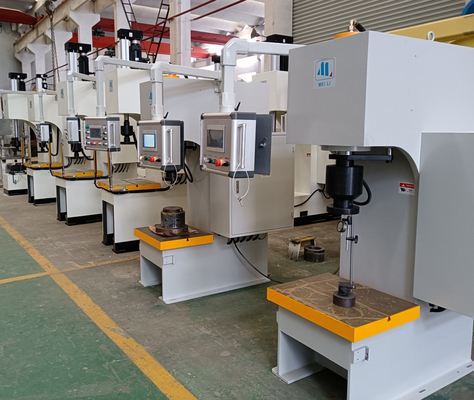

Electric cylinder high precision servo presses
Product application
1. It is used for pressing tooling in motor, auto parts, household appliances and electronics industries.
2. For pressure constant pressure system.
3. It is used for pressure and extension test system.
4. Press glasses and hardware products such as stamping, forming, shallow drawing and pressure assembly of metal or non-metal parts.
5. The products that can be pressed include watch cases, glasses, mobile phone products, tableware, signs, jewelry, parts, etc.
ELECTRIC SERVO ADVANTAGES
Energy efficient
accuracy
Low maintenance
Clean
Built to last a lifetime
Quiet operation
Product Features
1. Low impact, low noise, energy saving.
2. Touch screen setting and display the displacement and pressure.
3. Eletrical system controlled by PLC.
4. The accuracy of the the displacement can be reached 0.01mm. The accuracy of the pressure can be reached 1kg.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
