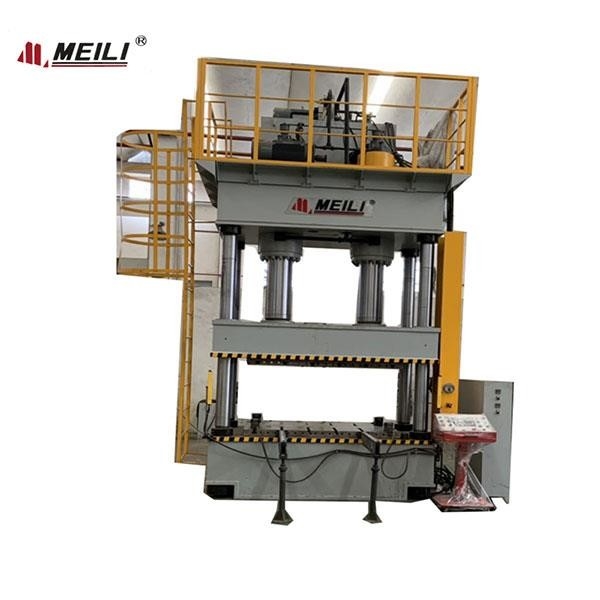

500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V

500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V
500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V

Large Image :  500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V

Description
Product Name: Double Action Four Column Hydraulic Press Machine Type: Four Column
Voltage: 380V/220V Optional,Customized,220V/380V(According System: Normal
Dimension(l*w*h): Machine Size Nominal Force: 5000KN
High Light:

500ton 4 post press hydraulic

,

4 post press hydraulic Double Action

,

industrial hydraulic press 380V/220V

500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V

Double Action Four Column Hydraulic Press Machine





The main performance characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.

3. Three beams and four columns structure of this machine,Economical and practical, easy to maintain.

4. Hydraulic control adopts integral cartridge valve design,Reduce impact force and leakage point.Reliable operation and long service life.

5. It can realize two actions of constant pressure and constant travel.

6. The pressure and stroke can be adjusted according to the production requirements within the specified range.

7. Manual and semi-automatic operation modes Adopt button centralized control





Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor



Specification

specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130




500ton 4 Post Press Hydraulic Double Action Industrial Hydraulic Press 380V/220V 0



FAQ

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
