Product Details:
|
| Product Name: | 800T 4 Post Servo Robust Hydraulic Press For Fiberglass Reinforced Plastics Products | Force: | 800T |
|---|---|---|---|
| Warranty: | 2 Years | Machinery Test Report: | Provided |
| Advantage: | Robust Hydraulic Press | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Application: | Composite Forming | Type: | Four Column |
| High Light: | 800T servo hydraulic press,4 Post servo hydraulic press ISO9001,4 post hydraulic press for Plastics Products |
||

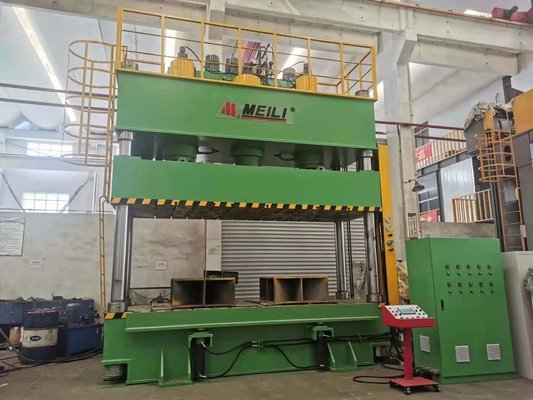

800T 4 Post Servo Hydraulic Press For Fiberglass Reinforced Plastics Products
800T 4 Post Servo Robust Hydraulic Press For Fiberglass Reinforced Plastics Products
Four Column Hydraulic Press Solution
Stamping, forming, shallow drawing, die spotting, molding and blanking etc. of metal and none metal parts;
Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments, lock parts and hardware etc.
Applicable fields:
It is suitable for drawing, blanking (blanking buffer device should be selected), bending, flanging, cold extrusion and other stamping processes of metal materials. It is also suitable for correction, pressing, pressing and forming of powder products and abrasive products, as well as pressing and forming of plastic products and insulation materials.
Specification
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
FAQ:
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
