100T Servo Four Pillar Hydraulic Presses For Metal Processing

100T Servo Four Pillar Hydraulic Presses For Metal Processing
100T Servo Four Pillar Hydraulic Presses For Metal Processing 100T Servo Four Pillar Hydraulic Presses For Metal Processing 100T Servo Four Pillar Hydraulic Presses For Metal Processing

Large Image :  100T Servo Four Pillar Hydraulic Presses For Metal Processing

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

100T Servo Four Pillar Hydraulic Presses For Metal Processing

Description
Product Name: 100T Four Pillar Servo Hydraulic Presses For Metal Processing Type: Four Pillar
Voltage: 380V,Customized Ejecting Force: 250KN
Usage: Pressing Metal Products After Sales Service: 25Mpa
High Light:

100T four pillar hydraulic press

,

380V four pillar hydraulic press

,

Servo hydraulic press For Metal Processing

100T Four Pillar Servo Hydraulic Presses for metal processing



100T Four Pillar Servo Hydraulic Presses for metal processing. MEILI is a famous manufacturer of hydraulic presses in world market. Its Brand has been reputation brand for many years in the field. We devote ourselves to product development, production and sales.



The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.



Product Application
1. Stamping, forming, shallow drawing, die spotting, molding and blanking etc. of metal and none metal parts;

2. Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments, lock parts and hardware etc.




specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
 Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
 Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
 Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
 Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

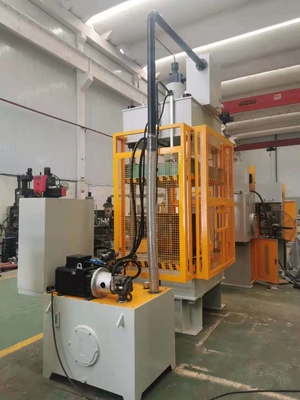

100T Servo Four Pillar Hydraulic Presses For Metal Processing 0

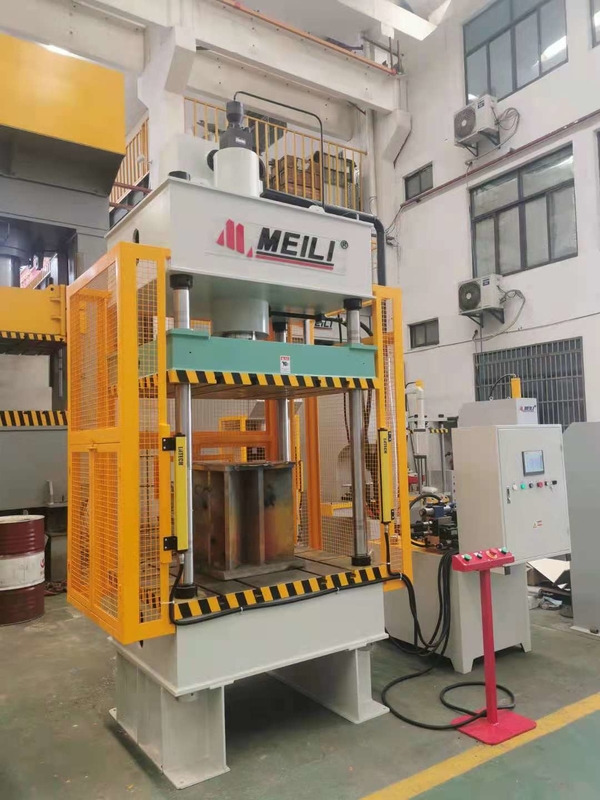

100T Servo Four Pillar Hydraulic Presses For Metal Processing 1

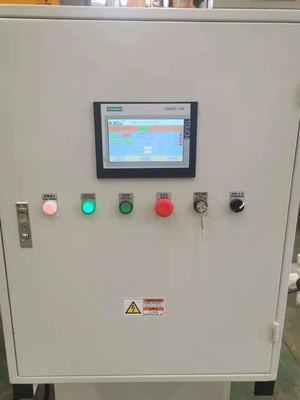

100T Servo Four Pillar Hydraulic Presses For Metal Processing 2



100T Servo Four Pillar Hydraulic Presses For Metal Processing 3



FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.


Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.


Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.


Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
