Product Details:
|
| Product Name: | 63T Four Column Hydraulic Press Machine For Stamping | Type: | Four Column |
|---|---|---|---|
| Motor: | SIEMENS | Max Working Pressure Of Fluid: | 25Mpa |
| Ejecting Force: | 100KN | Usage: | Stamping |
| High Light: | 63Ton Four Column Hydraulic Press Machine,Four Column Hydraulic Press Machine stamping,hydraulic stamping press CE ISO |
||

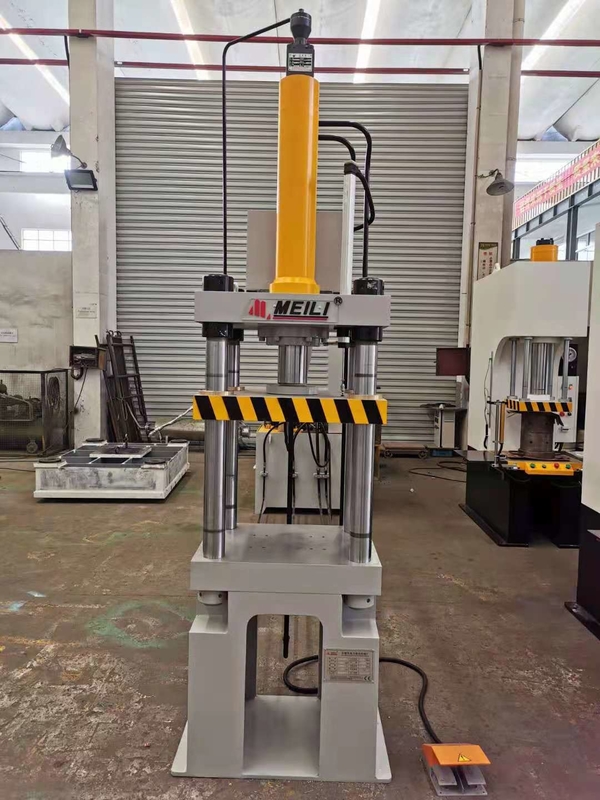

63T Four Column Hydraulic Press Machine for stamping
63T Four Column Hydraulic Press Machine for stamping. Suitable for drawing, bending, forming, stamping and flanging processes, especially for the following fields: Automobile parts production,Household electronics and Kitchen utensils.

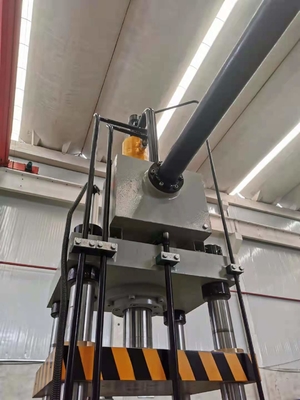

The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.
Product Advantage
1. The higher precision of the movable working table and high rigidity of the press body make this press typically suitable for forming of workpiece with irregular shape and required for high precision.
2. Faster working speeds allow higher production efficiency.
3. The main hydraulic cylinder is made of alloy cast steel and its inner surface is a finely grinded Machine.

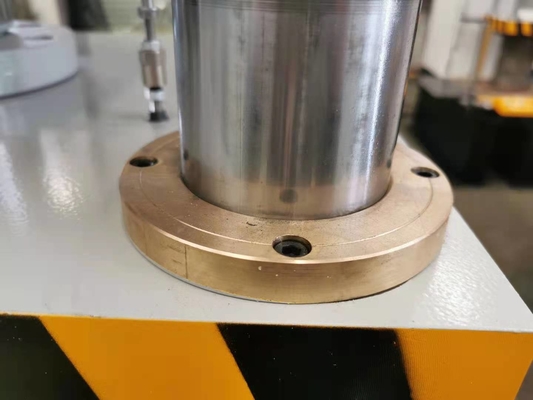

4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome.
5. The lower cylinder design makes a more compact overall dimension of the machine.
Specification
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production workshop for
four columns hydraulic press,and has a number of patented technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,
production capacity is very strong, conventional models try to ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
