|Product Name:||Four Post Hydraulic Presses For Assembling||Type:||Four Post|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support||Dimension(l*w*h):||Machine Size|
CNC four post hydraulic press,
four post hydraulic press ISO9001,
hydraulic assembly press HMI Control

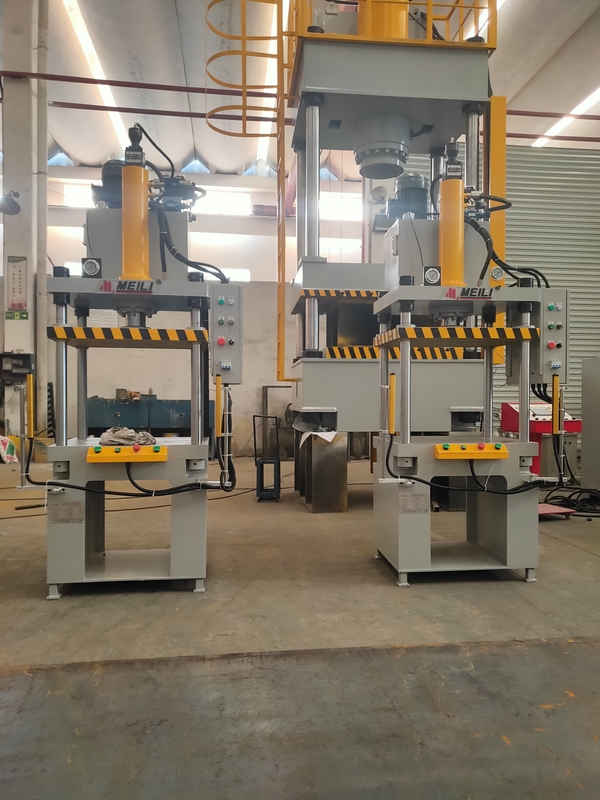

CNC Four Post Hydraulic Presses for assembling
The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.
1. Four Columns structure and slider made of top quality steel plate and annealing process, with good rigidity and improve accuracy.
2. Guiding of slider by eight-face linear guide way, enhance the stability of moving bolster movement and high eccentric pressing force.
3. Control system: PLC + HMI (Siemens brand), refer to pressing technology requirement set the parameters on HMI such as pressure, position, hold pressure, multi-pressing, etc; Easy to operation.
4. Fulfill different speed and pressure of pressing requirement, ensures the stability of movement.
5. Intellectualization. It can provide remote diagnosis and maintenance services.
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor
|Max working pressure of fluid||Mpa||22||25||25||25||25||25||25||25||25||25||25||25|
|Max opening Height||mm||600||700||900||900||1120||1250||1500||1500||1500||1500||1600||2000|
|Speed of slider||Idle stroke||mm/s||60||60||70||100||120||120||120||140||160||160||200||200|
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
