Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control

Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control
Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control

Large Image :  Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control

Description
Product Name: Custom Servo Four Column Hydraulic Press Machine Type: Four Column
System: Servo Power Source: Hydraulic
Color: Customizable Warranty: 2 Years
Core Components: Moto Pump PLC Other Usage: Assembly For Reduction Gearbox
Certification: CE ISO Dimension(l*w*h): Machine Size
High Light:

Custom Servo Four Column Hydraulic Press Machine

,

Four Column Hydraulic Press Machine CE ISO

,

Servo Press Machine HMI Control

Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control

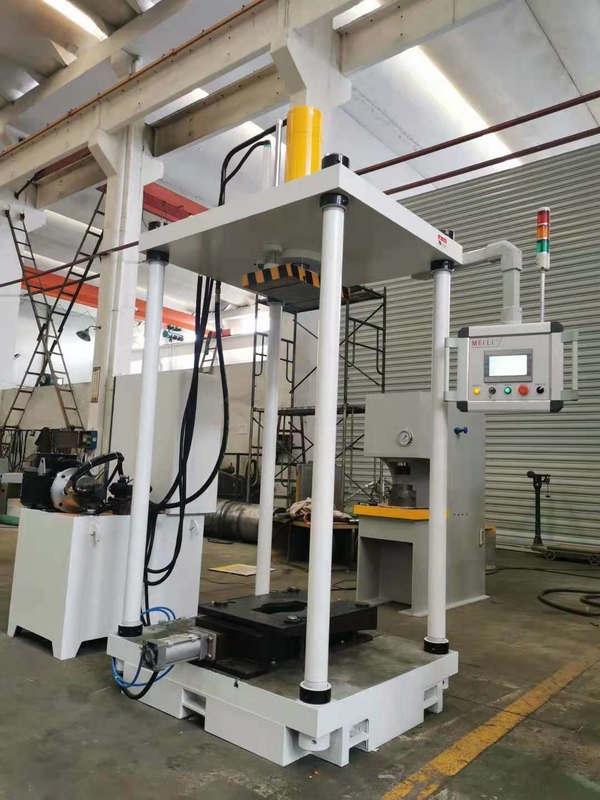

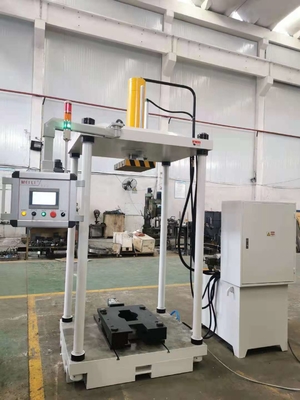

Custom Servo Four Column Hydraulic Press Machine. This machine is used for assembly for reduction gearbox. Each MEILI press can be equipped with hydraulic power unit and controls tailored to your specific application.

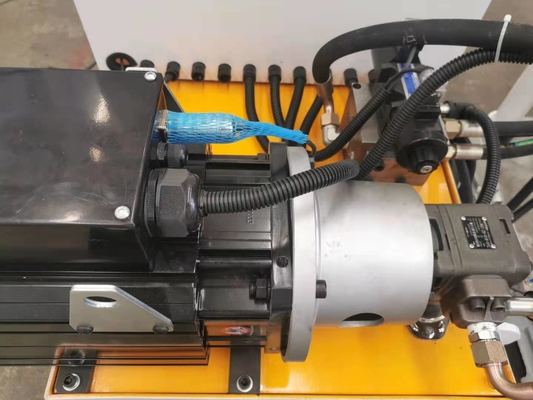

The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.



Applicable fields:

It is suitable for drawing, blanking (blanking buffer device should be selected), bending, flanging, cold extrusion and other stamping processes of metal materials. It is also suitable for correction, pressing, pressing and forming of powder products and abrasive products, as well as pressing and forming of plastic products and insulation materials.



Four Column Hydraulic Press Solution
Stamping, forming, shallow drawing, die spotting, molding and blanking etc. of metal and none metal parts;
Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments, lock parts and hardware etc.



specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130




Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control 0



Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control 1



Custom Servo Four Column Hydraulic Press Machine CE ISO HMI Control 2



FAQ

Is it independent research and development production?
Yes!

We have a strong technical team and a complete modern production workshop for

four columns hydraulic press,and has a number of patented technology.


Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,

production capacity is very strong, conventional models try to ensure that the spot.



Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,

you can tailor the design and provide a set of solutions.



Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.


Is it possible to visit your factory? Is the traffic convenient?
Yes!
