160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

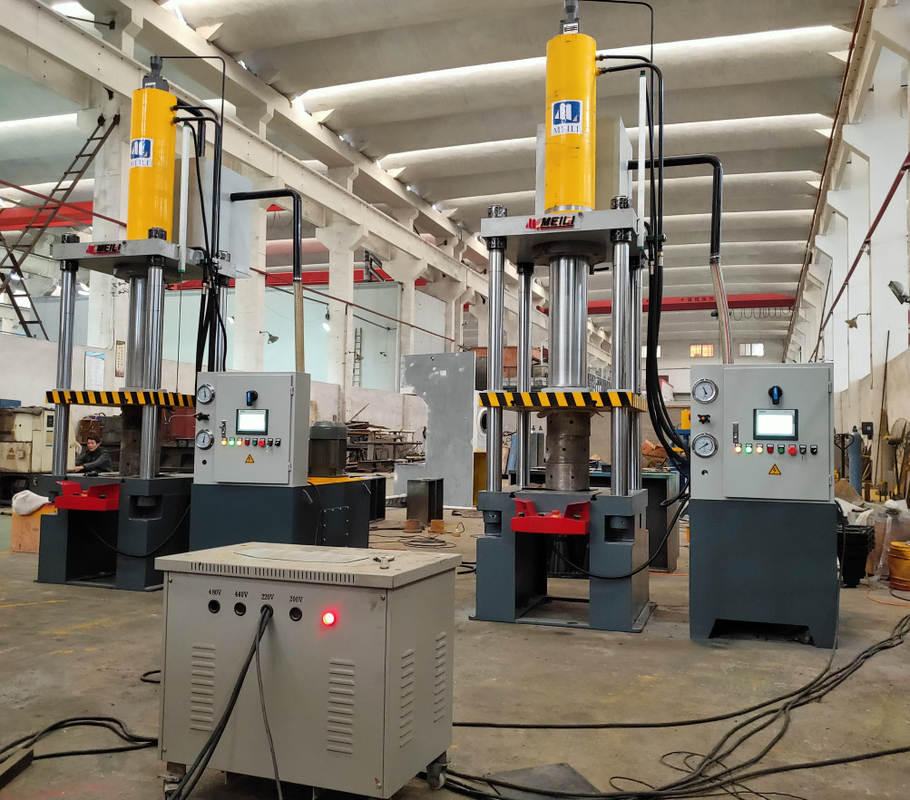

160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly

160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly
160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly

Large Image :  160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly

Description
Product Name: 160T Four Column Hydraulic Press Machine For Assembly Of The Machine Tool Type: Four Column
Keyword: Hydraulic Press Machine Application: Assembly
Usage: Assembly Of The Machine Tool Stroke: According To Buyer's Requirement
High Light:

160Ton Four Column Hydraulic Press Machine

,

Four Column Hydraulic Press Machine

,

4 column hydraulic press Machine Tool Assembly

160T Four Column Hydraulic Press Machine for assembly of the machine tool



160T Four Column Hydraulic Press Machine for assembly of the machine tool. And suitable for the flow assembly of the machine tool, internal combustion textile machinery, axle, bearing, washing machine, automobile motor, air conditioner motor, electric appliance in military enterprise and joint venture enterprise.


Four Column Hydraulic Press
1. Computer optimized design, 3-beam&4-column compact structure. With simple, economic and practical
2. Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design.
3. Independent electrical control system with reliability, intuitive movement and convenient amendment
4. Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
5. Preset Stroke Forming or Preset Pressure Forming process can be selected, Pressure holding period can be preset according to requirements.
6. Stroke and Pressure can be adjusted within specified scope.
7. According to custemer's reguirement, can choose servo digital control system,with features of save energy and easy to acljust.




specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
 Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
 Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
 Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
 Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
 Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
 Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130


160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly 0



160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly 1



160 Ton Four Column Hydraulic Press Machine For Machine Tool Assembly 2





FAQ

Is it independent research and development production?
Yes!

We have a strong technical team and a complete modern production workshop for

four columns hydraulic press,and has a number of patented technology.


Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,

production capacity is very strong, conventional models try to ensure that the spot.



Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,

you can tailor the design and provide a set of solutions.



Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.


Is it possible to visit your factory? Is the traffic convenient?
Yes!
