315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press

315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press
315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press 315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press 315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press

Large Image :  315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press

Description
Product Name: 315T Four Column Hydraulic Press Machine For Assembly Press Type: Four Column
Keyword: Hydraulic Press Machine, Assembly Press Nominal Force: 3150KN
Ejecting Force: 630KN Max Working Pressure Of Fluid: 25Mpa
High Light:

3Ton Four Column Hydraulic Press Machine

,

Four Column Hydraulic Press Machine

,

hydraulic assembly press CE ISO

315Ton Four Column Hydraulic Press Machine for assembly press




Feature:
1. By computer,Electrical box,PLC control---more simple,fast and precision.
2. TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3. Quite down but slow press cut, more accurate,+ _ 0.01mm.
4. Hydraulic system, Central automatic hydraulic lubrication systems can ensure precision and durability of the machine.
5. Feeding: Single or double auto feeding press beds for choosing,more economical and 2 or 3 times improving producting capacity.
6. With micro motion system for installed Double dies.





Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor



specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
 Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
 Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
 Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
 Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
 Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

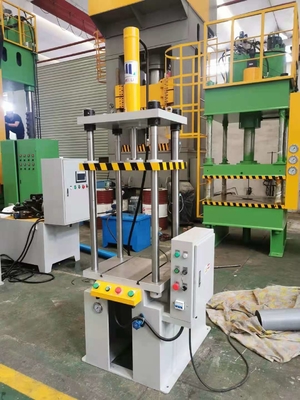

315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press 0

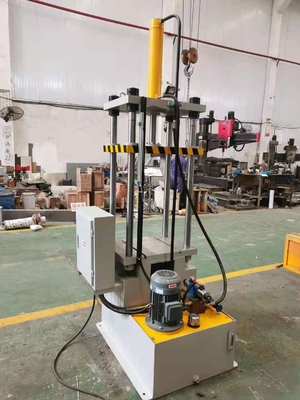

315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press 1

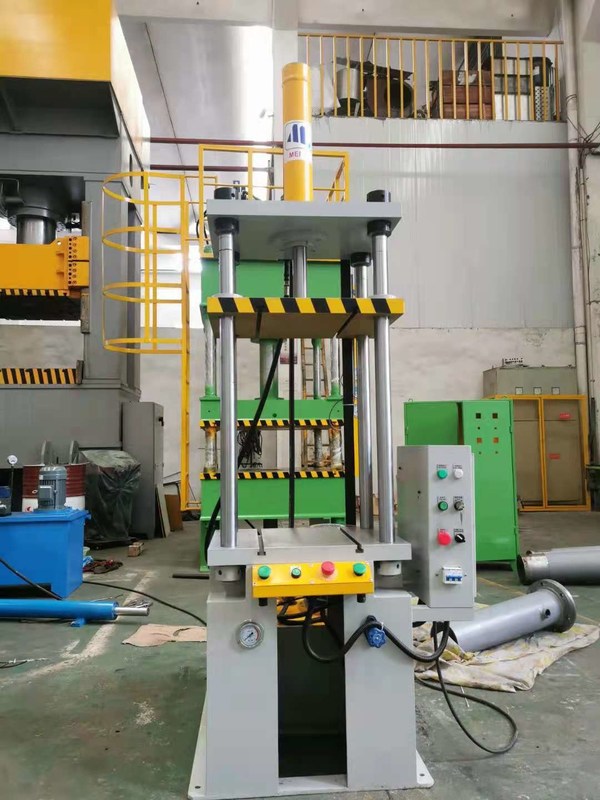

315Ton Four Column Hydraulic Press Machine Hydraulic Assembly Press 2



FAQ

Is it independent research and development production?
Yes!

We have a strong technical team and a complete modern production workshop for

four columns hydraulic press,and has a number of patented technology.


Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,

production capacity is very strong, conventional models try to ensure that the spot.



Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,

you can tailor the design and provide a set of solutions.



Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.


Is it possible to visit your factory? Is the traffic convenient?
Yes!
