315T Four Column Metal Processing Deep Draw Hydraulic Press OEM

315T Four Column Metal Processing Deep Draw Hydraulic Press OEM
315T Four Column Metal Processing Deep Draw Hydraulic Press OEM
315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 315T Four Column Metal Processing Deep Draw Hydraulic Press OEM

Large Image :  315T Four Column Metal Processing Deep Draw Hydraulic Press OEM

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

315T Four Column Metal Processing Deep Draw Hydraulic Press OEM

Description
Product Name: OEM 315T Four Column Metal Processing Deep Drawing Hydraulic Presses Application: Deep Drawing
Usage: Metal Processing Type: Four Column
Power Source: Hydraulic Cnc Or Not: CNC
High Light:

315T Deep Draw Hydraulic Press

,

Deep Draw Hydraulic Press CNC

,

hydraulic 4 post press OEM

OEM 315T Four Column Metal Processing Deep Drawing Hydraulic Presses





Product Information:

Four-column hydraulic presses are used in the heavy industry mainly in automatic processes of pressing, bending, cutting and hot forging. Most of them operate in robotic cells with automatic handling systems using modern manipulators and conveyors.

Our qualified team is experienced in designing such structures. We analyse weld stress using the effective notch method and optimise key system components such as the cylinder with piston, punch with die and tool holders. This allows us to prepare an appropriate system diagram, a professional design of the hydraulic and electrical system in a 3D model and deliver it to the customer together with detailed manufacturing and assembly documentation.





Optional:
1. Optoelectronic protective device
2. Moving table
3. Floating guide-way and rolling bracket for die exchange
4. Blanking buffer device
5. Quick die clamping mechanism
6. Industrial touching screen monitor
7. Stroke,pressure,speed digital control device
8. Water cooler device Displacement sensor





specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
 Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
 Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
 Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
 Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
 Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
 Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
 Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
 Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

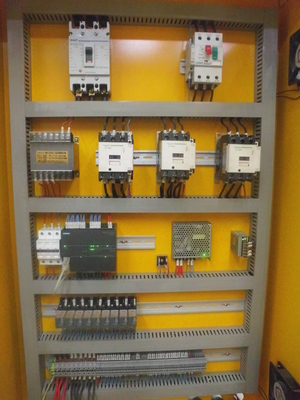

315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 0

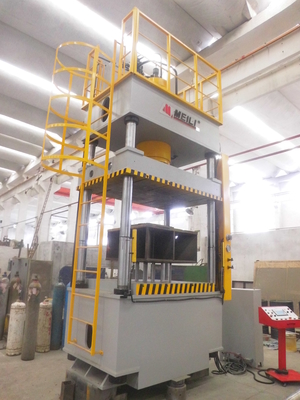

315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 1

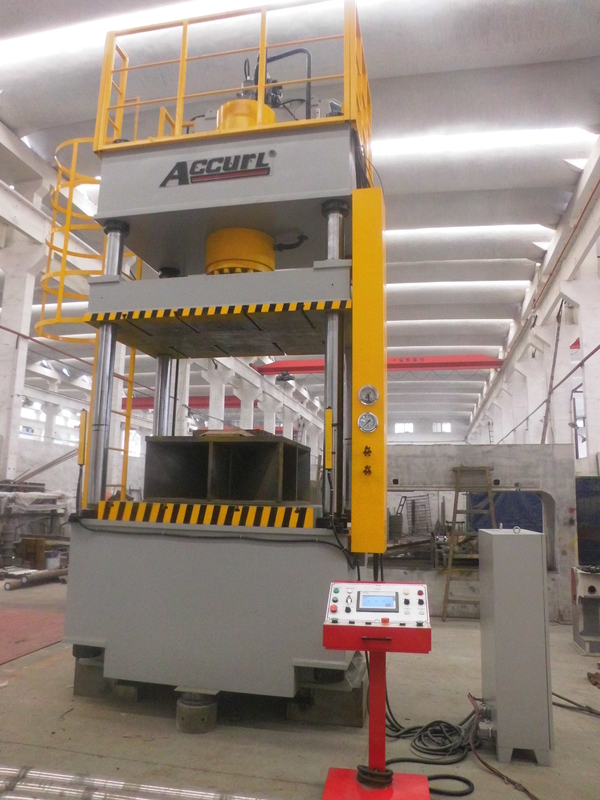

315T Four Column Metal Processing Deep Draw Hydraulic Press OEM 2



FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.


Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.


Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.


Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
