100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts
large.img.alt
100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts

Large Image :  100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts

Description
Product Name: 100T Four Column Molding Press Machine For Auto Parts After Warranty Service: 7.5KW
Application: Metal Forming Usage: Forming SMC Products
Max Opening Height: 900mm Cnc Or Not: CNC
Dimension(l*w*h): Machine Size Ejecting Stroke: 200mm
High Light:

100T Four Column Hydraulic Press Machine

,

Four Column Hydraulic Press Machine 100ton

,

Molding Press Machine For Auto Parts

100T Four Column molding press machine for auto parts



Pre-sales Service
1. Inquiry and consulting
2. Recommend the most suitable machine according to customer's purpose
3. Factory visiting welcomed



After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 2 year
4. Engineers available to service machinery oversea





The main performance characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..
2. Can be engaged in correction, compression, plastic products and powder products.



Performance characteristics:

Three beams and four columns structure of this machine,Economical and practical, easy to maintain.

Hydraulic control adopts integral cartridge valve design,Reduce impact force and leakage point.Reliable operation and long service life.

It can realize two actions of constant pressure and constant travel.

The pressure and stroke can be adjusted according to the production requirements within the specified range.

Manual and semi-automatic operation modes Adopt button centralized control





specification Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130

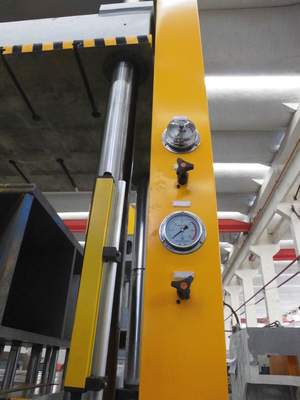

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 0

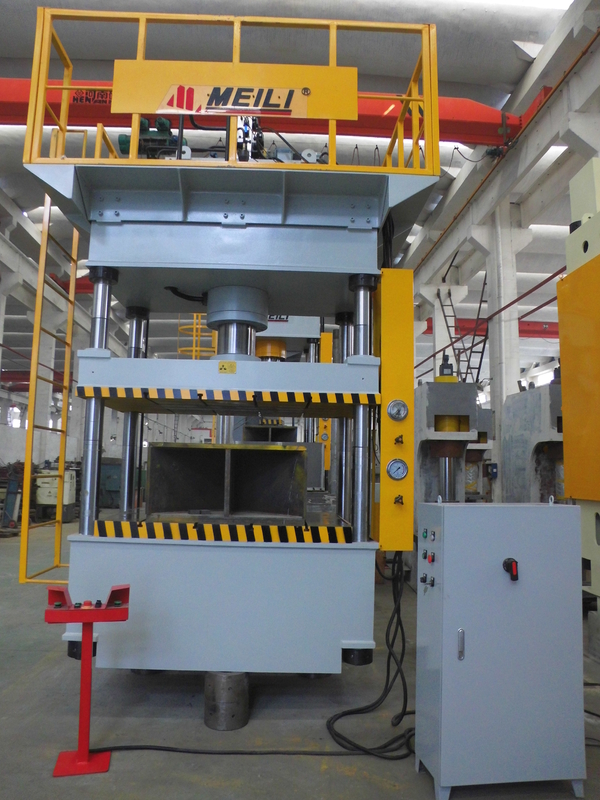

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 1

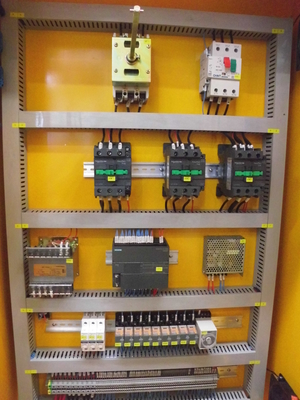

100T Four Column Hydraulic Press Machine Molding Press Machine For Auto Parts 2



FAQ

Is it independent research and development production?
Yes!

We have a strong technical team and a complete modern production workshop for

four columns hydraulic press,and has a number of patented technology.


Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand positioning the global market,

production capacity is very strong, conventional models try to ensure that the spot.



Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,

you can tailor the design and provide a set of solutions.



Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and the voltage is set according to your local voltage.


Is it possible to visit your factory? Is the traffic convenient?
Yes!
