Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment

Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment
Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment

Large Image :  Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment

Description
Warranty: 100T Hydraulic Press For Photovoltaic Power Generation Equipment After Warranty Service: 100T
Application: Forming Core Components: Moto Pump PLC Other
Type: Four Column System: CNC
Material: GB235 Steel Plate Keyword: Four Column Hydraulic Press Machine
High Light:

hydraulic metal stamping press 100Ton

,

hydraulic metal stamping press Photovoltaic Power equipment

,

GB235 Steel Plate hydraulic steel press

Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment





100T Hydraulic Press for photovoltaic power generation equipment  To learn more about how you can customize your 4-Post press, please submit an inquiry on our Contact Us page. Our equipment experts look forward to assisting you!

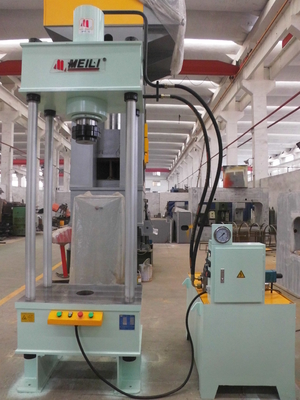

Four Column Hydraulic Press

  • Computer optimized design, 3-beam&4-column compact structure. With simple, economic and practical
  • Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design.
  • Independent electrical control system with reliability, intuitive movement and convenient amendment
  • Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
  • Preset Stroke Forming or Preset Pressure Forming process can be selected, Pressure holding period can be preset according to requirements.
  • Stroke and Pressure can be adjusted within specified scope.
  • According to custemer's reguirement, can choose servo digital control system,with features of save energy and easy to acljust.





specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
 Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
 Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
 Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
 Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
 Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130


Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment 0



Hydraulic Metal Stamping Press 100Ton Hydraulic Steel Press For Photovoltaic Power Generation Equipment 1



FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.


Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.


Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.


Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
