Product Details:
|
| Product Name: | Semi Automatic Straightening Hydraulic Press | Force: | 40KN |
|---|---|---|---|
| Keywords: | Straightening Hydraulic Press | Automatic: | Semi-automatic |
| Max Opening Height: | 400mm | Max Stroke: | 300mm |
| Core Components: | Moto Pump PLC Other | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| High Light: | Semi auto Hydraulic Straightening Press,Hydraulic Straightening Press 40 Tons,Straightening Hydraulic Press High Accuracy |
||

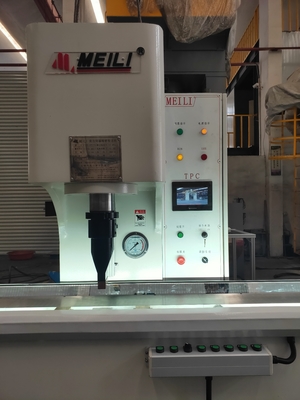

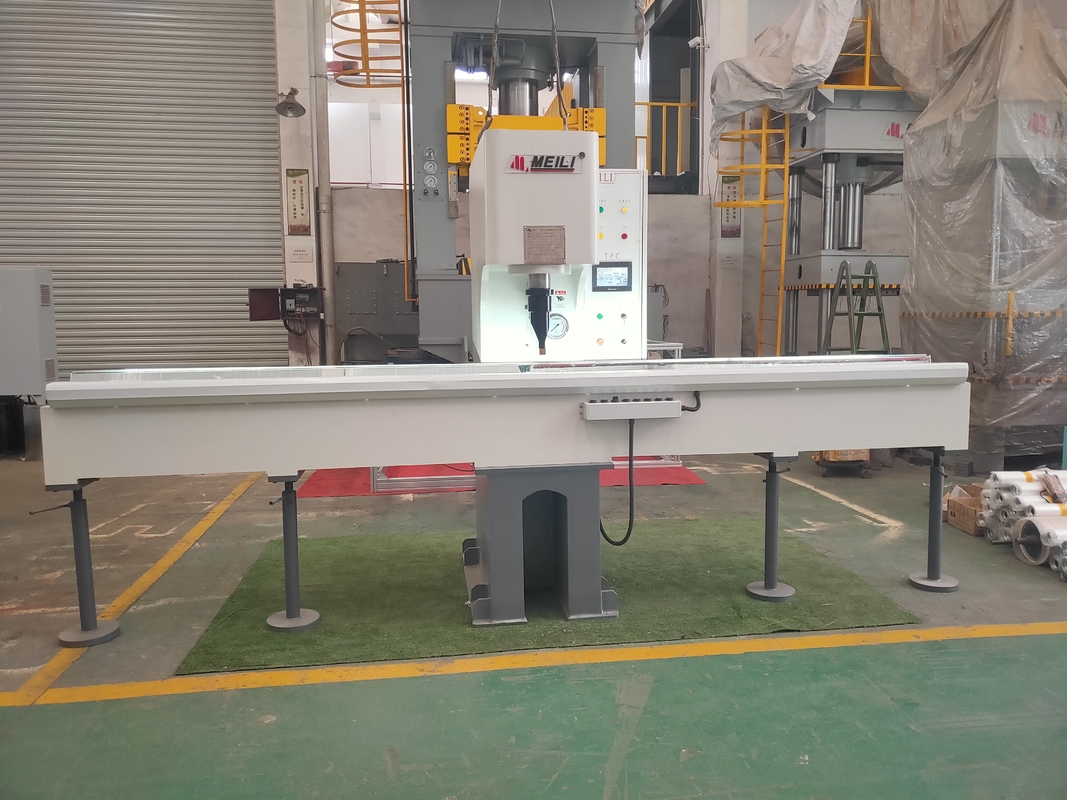

Semi automatic Straightening Hydraulic Press
Competitive Advantage:
1. We use our self-made servo valve, so that the machine has no safety concerns in operation, high stability, long life, and not easy to damage.
2. We can provide the alignment program of your company's parts or products according to the needs of customers.
3. The straightening accuracy can reach 0.01.
4. The pressing point can be fixed for quick and easy straightening.
5. Straightening and testing are done in one machine, reducing working hours.
6. We have CE certification.
| Description | Unit | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | 400T | 500T | |
| Force | KN | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | 250 | 315 | 400 | 500 | |
| Table size | L-R | mm | 1000 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 |
| F-B | mm | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | |
| Max opening height | mm | 300 | 300 | 350 | 350 | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 700 | 700 | |
| Max stroke | mm | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 400 | 400 | 500 | 500 | 500 | 500 | |
| Throat Depth | mm | 170 | 170 | 200 | 200 | 200 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | |
| Down speed | mm/s | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 | 20 | 20 | |
| Return speed | mm/s | 70 | 70 | 70 | 70 | 60 | 60 | 60 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Height from working table | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 3 | 3 | 4 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 22 | 22 | |
