Product Details:
|
| Product Name: | Straightening Hydraulic Press Factory In China | Force (kN): | 25T |
|---|---|---|---|
| Max Opening Height: | 350mm | Automatic: | Semi-automatic |
| Max Stroke: | 300mm | Advantage: | Easy Operation Machine |
| Throat Depth: | 200mm | System: | CNC |
| High Light: | 25Tons Hydraulic Straightening Press,Hydraulic Straightening Press 25KN,straightening press machine MEILI |
||

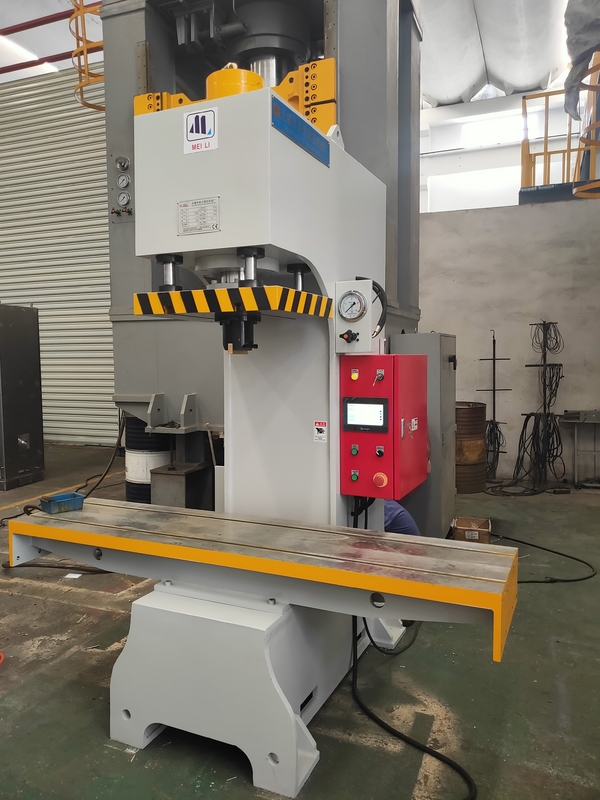

Straightening Hydraulic Press Factory in China
Straightening hydraulic press for sale economical and Practical, Hydraulic control adopts to insert set valve integrated system, decrease let out Point.Movement reliability, durable and long life span, Itis constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form.
Application field: This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.
| Description | Unit | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | 400T | 500T | |
| Force | KN | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | 250 | 315 | 400 | 500 | |
| Table size | L-R | mm | 1000 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 |
| F-B | mm | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | |
| Max opening height | mm | 300 | 300 | 350 | 350 | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 700 | 700 | |
| Max stroke | mm | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 400 | 400 | 500 | 500 | 500 | 500 | |
| Throat Depth | mm | 170 | 170 | 200 | 200 | 200 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | |
| Down speed | mm/s | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 | 20 | 20 | |
| Return speed | mm/s | 70 | 70 | 70 | 70 | 60 | 60 | 60 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Height from working table | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 3 | 3 | 4 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 22 | 22 | |
