Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC

Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC
Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC
Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC

Large Image :  Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC

Description
Product Name: Servo Automatic Straightening Hydraulic Press Supplier In China Force: 40T
Max Stroke: 300mm Throat Depth: 200mm
Down Speed: 30mm/s Certification: CE ISO
Return Speed: 60mm/s Warranty: 2 Years
High Light:

Servo automatic Hydraulic Straightening Press

,

Hydraulic Straightening Press 40Tons

,

small Hydraulic Press PLC

Servo automatic Straightening Hydraulic Press Supplier in China



MEILI is experienced and dynamic. It is a team of people who love designing machinery and never stop innovating.

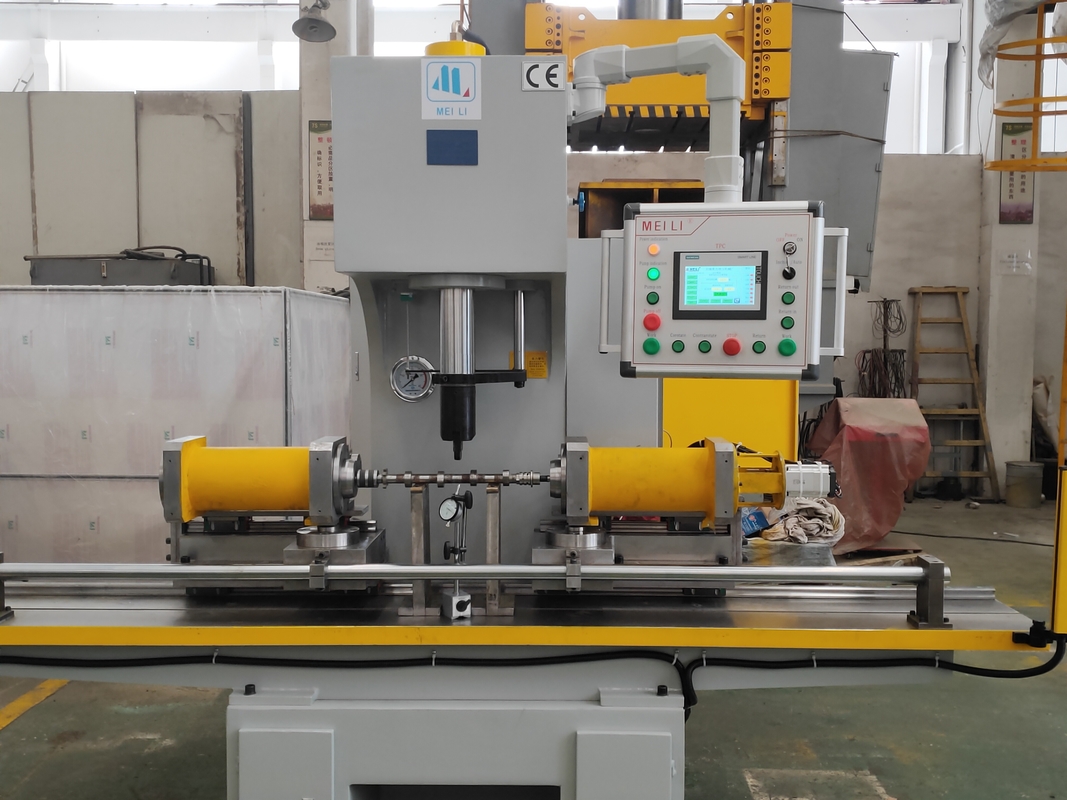

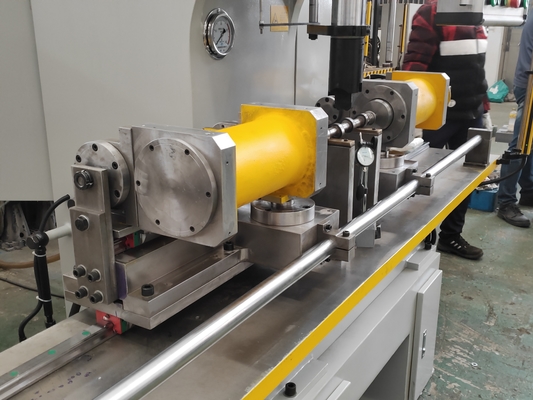

MEILI hydraulic straightening machine is mainly used for straightening and press-fit small and medium straight shaft parts, especially for shaft parts after quenching. The accuracy can be corrected to within 0.03mm. Semi-automatic straightening machine can accurately set the stroke of the indenter through the computer programming system, effectively control the depression distance, and not repeatedly align, which greatly improves the work efficiency and alignment accuracy.


Automatic C frame straightening hydraulic press for sale are mainly suitable for the press-fitting of shaft parts, bending of plate parts, stamping, sleeve type, stretching of simple parts, and press-forming of plastic products. Machine tools, internal combustion engines, textile machinery, shafts, bearings, washing machines, automotive motors, air-conditioning motors, military industrial enterprises, electrical appliances, and assembly lines of foreign-funded enterprises are used.


 Description Unit 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T 400T 500T
Force KN 6.3 10 16 25 40 63 100 160 200 250 315 400 500
 Table size L-R mm 1000 1600 1600 1600 2000 2000 2000 2000 2000 2000 3000 3000 3000
F-B mm 300 300 300 350 400 500 500 500 600 600 600 600 600
Max opening height mm 300 300 350 350 400 400 400 500 500 600 600 700 700
Max stroke  mm 250 250 300 300 300 300 300 400 400 500 500 500 500
Throat Depth mm 170 170 200 200 200 300 300 300 350 350 350 350 350
Down speed  mm/s 30 30 30 30 30 30 30 30 20 20 20 20 20
Return speed  mm/s 70 70 70 70 60 60 60 60 50 50 50 50 50
Height from working table mm 750 750 750 750 750 750 750 750 750 750 750 750 750
Powder of motor KW 3 3 4 4 5.5 5.5 7.5 11 11 15 15 22 22



Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC 0



Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC 1



Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC 2
