30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

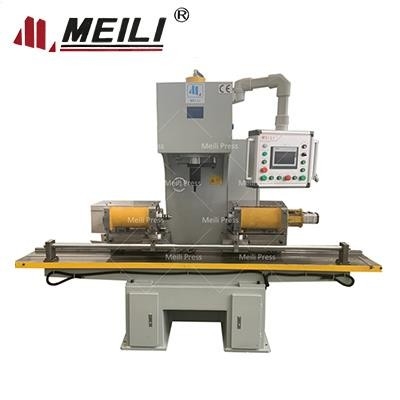

30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic

30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic
large.img.alt
30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic 30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic

Large Image :  30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic

Description
Product Name: Semi Automatic Straightening Hydraulic Press Force: 30T
Keywords: Straightening Hydraulic Press Automatic: Semi-automatic
Warranty: 2 Years Advantage: High-accuracy
Core Components: Moto Pump PLC Other After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
High Light:

30 Tons Straightening Press machine

,

Straightening Press machine MEILI

,

Hyd Straightening Press

Semi automatic Straightening Hydraulic Press





Straightening Hydraulic Press is mainly used for straightening and press-fit small and medium straight shaft parts, especially for shaft parts after quenching. The accuracy can be corrected to within 0.03mm.


The machine adopts the double top withstand the workpiece, manual inspection, mobile workstations. The height of "V"-shaped block can be adjusted. The machine uses pressurized jog or manual pump pressure, and the speed can be adjusted.



 Description Unit 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T 400T 500T
Force KN 6.3 10 16 25 40 63 100 160 200 250 315 400 500
 Table size L-R mm 1000 1600 1600 1600 2000 2000 2000 2000 2000 2000 3000 3000 3000
F-B mm 300 300 300 350 400 500 500 500 600 600 600 600 600
Max opening height mm 300 300 350 350 400 400 400 500 500 600 600 700 700
Max stroke  mm 250 250 300 300 300 300 300 400 400 500 500 500 500
Throat Depth mm 170 170 200 200 200 300 300 300 350 350 350 350 350
Down speed  mm/s 30 30 30 30 30 30 30 30 20 20 20 20 20
Return speed  mm/s 70 70 70 70 60 60 60 60 50 50 50 50 50
Height from working table mm 750 750 750 750 750 750 750 750 750 750 750 750 750
Powder of motor KW 3 3 4 4 5.5 5.5 7.5 11 11 15 15 22 22



30 Tons Hyd Straightening Press Machine High Accuracy Semi Automatic 0
