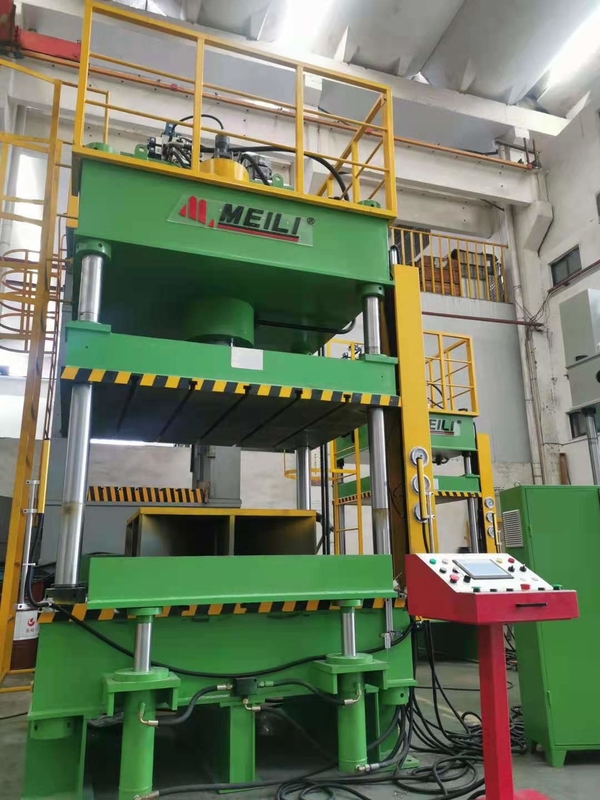

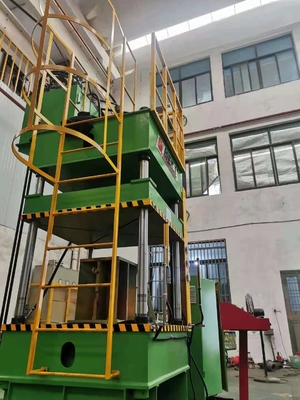

Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box

Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box
Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box

Large Image :  Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T
Supply Ability: 80 Sets per Month

Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box

Description
Product Name: 200T Four Column Hydraulic Press For Making Electric Box System: Servo
Usage: Forming Application: SMC Products
Nominal Force: 2000KN Ejecting Force: 400KN
Cnc Or Not: CNC Power Source: Hydraulic
High Light:

Servo Four Column metal forming hydraulic press

,

200T metal forming hydraulic press

,

metalworking hydraulic press Electric Box

200T Servo Four Column Hydraulic Press for making electric box



Feature:
1. By computer,Electrical box,PLC control---more simple,fast and precision.
2. TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3. Quite down but slow press cut, more accurate,+ _ 0.01mm.
4. Hydraulic system, Central automatic hydraulic lubrication systems can ensure precision and durability of the machine.
5. Feeding: Single or double auto feeding press beds for choosing,more economical and 2 or 3 times improving producting capacity.
6. With micro motion system for installed Double dies.



The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.



specification  Unit 40T 63T 100T 160T 200T 315T 500T 630T 1000T 1250T 1600T 2000T
Nominal force KN 400 630 1000 1600 2000 3150 5000 6300 10000 12500 16000 20000
 Ejecting force KN 63 100 250 250 400 630 1000 1000 1600 1600 2400 2400
 Max working pressure of fluid Mpa 22 25 25 25 25 25 25 25 25 25 25 25
Slider Stroke mm 400 500 500 500 700 800 900 900 900 900 900 1200
 Max opening Height mm 600 700 900 900 1120 1250 1500 1500 1500 1500 1600 2000
Table Size  L-R mm 500 580 710 900 900 1200 1400 1500 1500 1800 2000 3000
 F-B mm 500 500 580 800 900 1200 1400 1500 1500 1600 1600 2000
 Ejecting stroke mm 120 160 200 200 250 300 350 350 400 400 450 450
 Speed of slider Idle stroke mm/s 60 60 70 100 120 120 120 140 160 160 200 200
 Pressing mm/s 40 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15 8-15
Returning mm/s 80 70 70 80 90 90 90 100 120 120 120 120
 Motor powder KW 5.5 5.5 7.5 11 15 18.5 30 44 68 75 90 130



Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box 0



Servo Four Column 200T Metal Forming Hydraulic Press For Electric Box 1



FAQ:

Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.


Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.


Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.


Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
