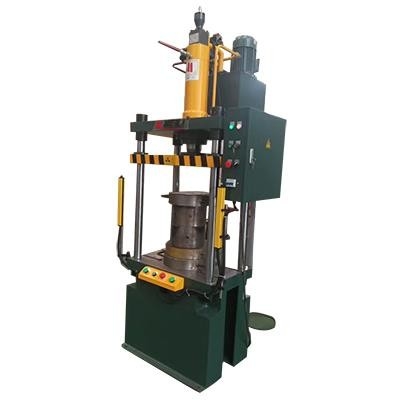

10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing

10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing
10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing

Large Image :  10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing

Description
Product Name: 10 Ton High Speed Hydraulic Presses Manufacturer In China Force: 10KN
Working Speed Of Slider: 10-15mm/s Adjustable Operation Height: 710mm
Advantage: Easy Operation Machine Core Components: Moto Pump PLC Other
High Light:

10T High Speed Hydraulic Press

,

High Speed Hydraulic Press Metal Processing

,

4 column hydraulic press meili

10 ton High Speed Hydraulic presses manufacturer in China.



Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting.



It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.



Advantages:

Independent electrical control with PLC and TPC.
Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
The pressure, stroke, and time of pressure maintaining can be regulated.
High quality and performance with good price.



Description Unit 10T 16T 25T 40T 63T 100T 200T 250T 315T 400T
Nominal Force KN 10 16 25 40 63 100 200 250 315 400
Table size L-R mm 500 600 600 600 700 800 900 900 900 900
F-B mm 440 500 600 550 600 600 650 650 700 700
Slider L-R mm 400 400 450 500 500 500 700 800 800 800
F-B mm 300 350 350 400 450 450 550 650 700 700
Hydraulic cushion Force T   500 600 700 700 700 700
Stroke mm 400 400 450 450 500 500
Max opening height mm 500 550 600 700 800 800 800 800 900 900
Stroke of slider mm 300 350 350 400 500 500 500 500 500 500
Throat Depth mm 250 280 280 300 300 325 325 400 400 400
Down speed of slider mm/s 150 150 150 150 150 150 150 150 120 120
Working speed of slider mm/s 10-15adjustable
Return speed of slider mm/s 120 120 120 120 120 120 110 110 87 85
Operation Height mm 710
Powder of motor KW 2.2 2.2 2.2 4 5.5 5.5 7.5 11 18.5 22
Total weight T 1 1.5 2 2.5 3.5 4.5 7.5 9.6 15 20

10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing 0



10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing 1



10T High Speed Hydraulic Press 4 Column High Productivity Metal Processing 2
