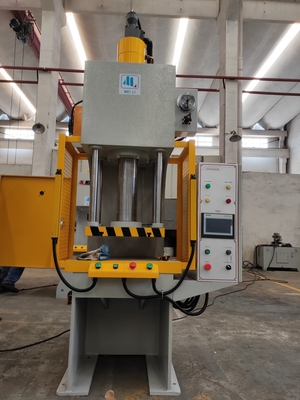

40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller

40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller
40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller

Large Image :  40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller

Description
Product Name: 40ton High Speed Hydraulic Pressing Machine For Sale Force: 40KN
Type: C Frame Max Opening Height: 700mm
Stroke Of Slider: 400mm Throat Depth: 300mm
High Light:

40Ton High Speed Hydraulic Press

,

High Speed Hydraulic Press 40KN

,

high speed press machine CE ISO

40T High Speed Hydraulic pressing machine for sale​.



  • With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
  • Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
  • In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
  • The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
  • Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.



Our product offerings include:
Multi-action Presses
C-Frame Presses (1-300 tons)
4-Post Presses (up to 1,200 tons)
H-Frame Presses(up to 1,200 tons)
Service
Maintenance
Spare Parts







 Description Unit 10T 16T 25T 40T 63T 100T 200T 250T 315T 400T
 Nominal Force KN 10 16 25 40 63 100 200 250 315 400
Table size L-R mm 500 600 600 600 700 800 900 900 900 900
 F-B mm 440 500 600 550 600 600 650 650 700 700
Slider L-R mm 400 400 450 500 500 500 700 800 800 800
 F-B mm 300 350 350 400 450 450 550 650 700 700
Hydraulic cushion Force T   500 600 700 700 700 700
Stroke mm 400 400 450 450 500 500
 Max opening height mm 500 550 600 700 800 800 800 800 900 900
 Stroke of slider mm 300 350 350 400 500 500 500 500 500 500
 Throat Depth mm 250 280 280 300 300 325 325 400 400 400
 Down speed of slider mm/s 150 150 150 150 150 150 150 150 120 120
 Working speed of slider mm/s 10-15adjustable
 Return speed of slider mm/s 120 120 120 120 120 120 110 110 87 85
 Operation Height mm 710
 Powder of motor KW 2.2 2.2 2.2 4 5.5 5.5 7.5 11 18.5 22
 Total weight T 1 1.5 2 2.5 3.5 4.5 7.5 9.6 15 20



40Ton High Speed Hydraulic Press 40KN C Type Touch Panel Controller 0
