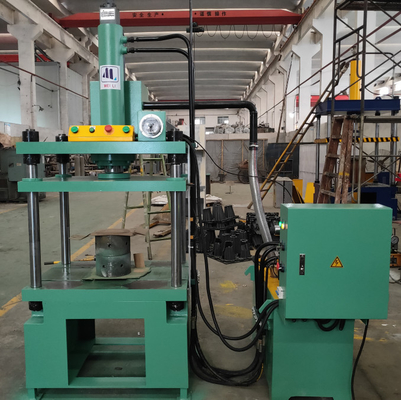

10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO
10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO 10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

Large Image :  10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

Description
Product Name: 10 Ton High Speed Hydraulic Presses Manufacturer In China Force: 10KN
Max Opening Height: 500mm Stroke Of Slider: 300mm
Core Components: Moto Pump PLC Other Throat Depth: 250mm
Type: 4 Post Function: Metal Processing
High Light:

10 ton High Speed Hydraulic Press

,

High Speed Hydraulic Press 10KN

,

high speed press machine CE ISO

10 ton High Speed Hydraulic presses manufacturer in China.





Standard:
Light curtain safety device
Touch panel controller(TPC)
PLC program controller
Stroke,speed digital control device
Cooler device Displacemert sensor
Constant stroke/constant pressure exchange



Advantages:

Independent electrical control with PLC and TPC.

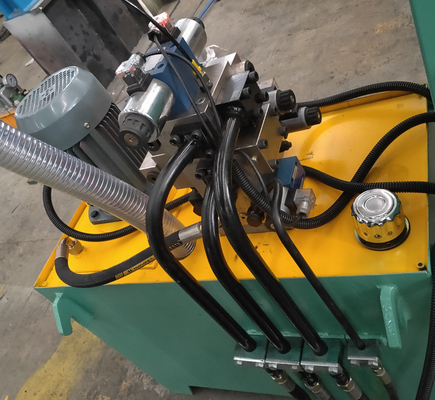

Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
The pressure, stroke, and time of pressure maintaining can be regulated.
High quality and performance with good price.





Our product offerings include:
Multi-action Presses
C-Frame Presses (1-300 tons)
4-Post Presses (up to 1,200 tons)
H-Frame Presses(up to 1,200 tons)
Service
Maintenance
Spare Parts







Description Unit 10T 16T 25T 40T 63T 100T 200T 250T 315T 400T
Nominal Force KN 10 16 25 40 63 100 200 250 315 400
Table size L-R mm 500 600 600 600 700 800 900 900 900 900
F-B mm 440 500 600 550 600 600 650 650 700 700
Slider L-R mm 400 400 450 500 500 500 700 800 800 800
F-B mm 300 350 350 400 450 450 550 650 700 700
Hydraulic cushion Force T   500 600 700 700 700 700
Stroke mm 400 400 450 450 500 500
Max opening height mm 500 550 600 700 800 800 800 800 900 900
Stroke of slider mm 300 350 350 400 500 500 500 500 500 500
Throat Depth mm 250 280 280 300 300 325 325 400 400 400
Down speed of slider mm/s 150 150 150 150 150 150 150 150 120 120
Working speed of slider mm/s 10-15adjustable
Return speed of slider mm/s 120 120 120 120 120 120 110 110 87 85
Operation Height mm 710
Powder of motor KW 2.2 2.2 2.2 4 5.5 5.5 7.5 11 18.5 22
Total weight T 1 1.5 2 2.5 3.5 4.5 7.5 9.6 15 20



MEILI has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades. All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy. We don’t rush or take the easy way out. Reliable press tailored to your application by MEILI who truly care about you and your business.





10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO 0



10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO 1



10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO 2



Contact MEILIPRESS if your business:
Struggles with accuracy, quality or repeatability with your current machines.And want a new one.
