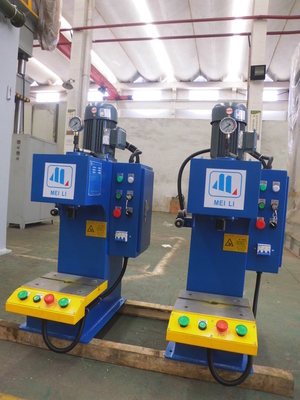

5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE

5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE
5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE

Large Image :  5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE

Description
Product Name: Hydraulic Bench Presses Supplier In China Force: 1T
Warranty: 2 Years Function: Assembly, Forming And Stamping
Key Selling Points: Cheap Advantage: Easy Operation Machine
Core Components: Moto Pump PLC Other After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Type: C Frame
High Light:

5KN bench top hydraulic press

,

bench top hydraulic press 3KW

,

CE 5T Steel Body C Type press

Hydraulic Bench Presses Supplier in China



MEILI is experienced and dynamic. It is a team of people who love designing machinery and never stop innovating.



Application:

C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.



Features:

1. The steel body is entirely welded with steel plates, and treated to relive stress by tempering

2. Cartridge valve integral unit equipment for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.

3. Independent electrical control, reliable, audio-visual and convenient for maintenance.

4. Centralized button control system, with adjustment, hand and semi-auto operation modes.

5. Fixed stroke forming process of fixed pressure forming process selected through control panel, with pressure hold and time delay functions.

6. The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.



Description Unit 1T 1.6T 2.5T 4T 5T
Nominal Force KN 1 1.6 2.5 4 5
Table size L-R mm 300 300 350 350 350
F-B mm 250 250 300 300 350
Max opening height mm 300 300 350 350 350
Max stroke of slider mm 120 120 160 160 200
Throat Depth mm 120 120 160 160 180
Down speed of slider mm/s 60 50 42 42 42
Return speed of slider mm/s 80 80 80 80 80
Operation Height mm 200 200 200 200 200
Powder of motor KW 1.5 1.5 2.2 2.2 3



5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE 0



5KN 3KW Bench Top Hydraulic Press 5T Steel Body C Type Press CE 1
