Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

2.5KN Hydraulic Table Press 2.5T Table Hydraulic Press 2.2KW

Description
Product Name: Hydraulic Bench Presses Factory In China Force: 2.5T
Type: C Frame Max Opening Height: 350mm
Max Stroke Of Slider: 160mm Core Components: Moto Pump PLC Other
Throat Depth: 160mm Function: Assembly, Forming And Stamping
High Light:

2.5KN Hydraulic Table Press

,

Hydraulic Table Press 2.5T

,

table hydraulic press 2.2KW

2.5KN Hydraulic Table Press 2.5T Table Hydraulic Press 2.2KW





MEILI is pleased to offer a complete line of hydraulic bench presses, ideal for bench top mounting. Our bench press is 1 to 20 tons. While our standard model sizes are very popular, our engineers are glad to work with clients on special applications. Please contact us to see how we can customize a bench top press to meet your requirements.

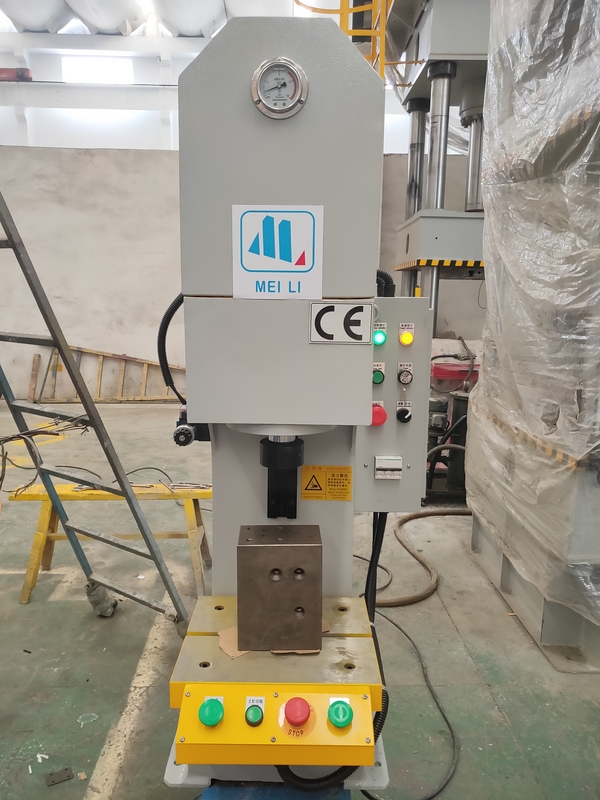

MEILI C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.



Description Unit 1T 1.6T 2.5T 4T 5T
Nominal Force KN 1 1.6 2.5 4 5
Table size L-R mm 300 300 350 350 350
F-B mm 250 250 300 300 350
Max opening height mm 300 300 350 350 350
Max stroke of slider mm 120 120 160 160 200
Throat Depth mm 120 120 160 160 180
Down speed of slider mm/s 60 50 42 42 42
Return speed of slider mm/s 80 80 80 80 80
Operation Height mm 200 200 200 200 200
Powder of motor KW 1.5 1.5 2.2 2.2 3


2.5KN Hydraulic Table Press 2.5T Table Hydraulic Press 2.2KW 0



2.5KN Hydraulic Table Press 2.5T Table Hydraulic Press 2.2KW 1

Looking for a larger size C-frame hydraulic press?Please contact us for more information.
