Product Details:
|
| Product Name: | 2.5T Portable Hydraulic Table Press For Sale | Force: | 2.5T |
|---|---|---|---|
| Advantage: | 350mm L-R | Max Opening Height: | 350mm |
| Max Stroke Of Slider: | 160mm | Certification: | CE ISO |
| Key Point: | Portable | Power Source: | Hydraulic |
| High Light: | portable Hydraulic Table Press,Hydraulic Table Press 20Ton,table top hydraulic press CE ISO9001 |
||

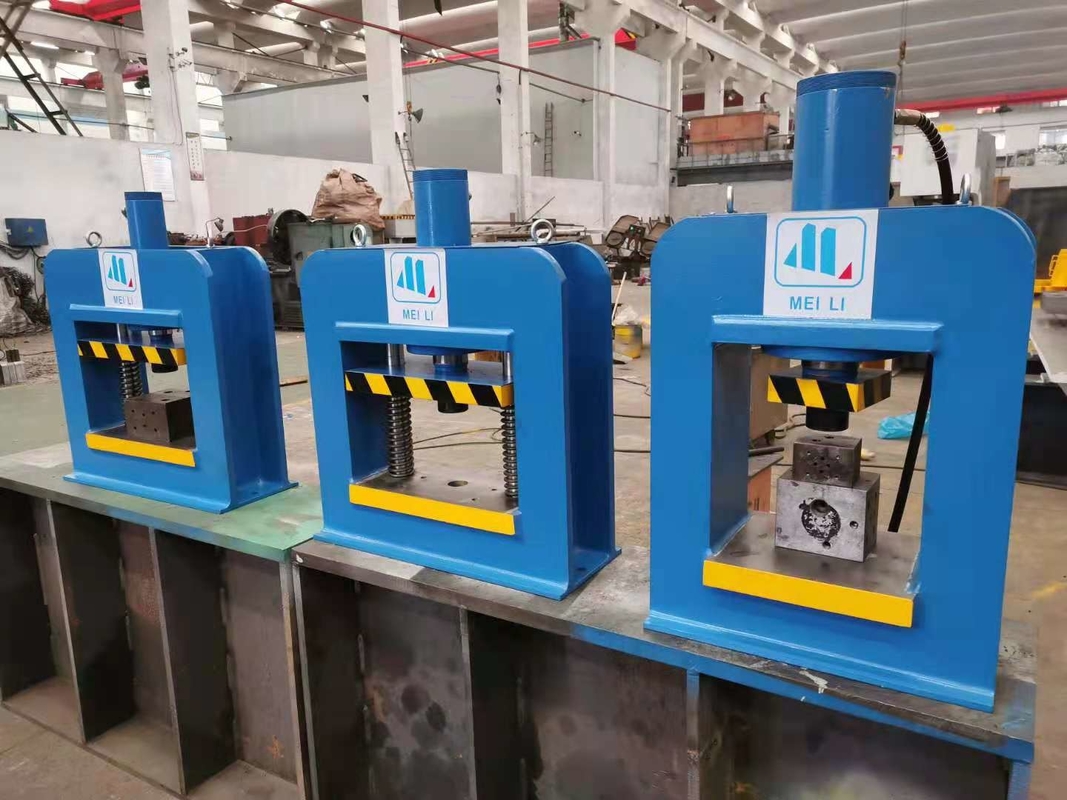

20T portable hydraulic table press for sale
These are the presses for forming sheet metal. They are leading, machines or steel door and white appliances like refrigerators,laundry machines, etc.
Desired designs are connecting to platforms with molds to the fast and standard way. These presses provide standard and fast production opportunities for manufacturers.
Our manufacturing is customer-oriented. We can manufacture in all dimensions and characteristics according to the buyer's request.
Whether you provide your own bench, or we supply one for you, these compact but powerful bench top hydraulic presses can be used for a wide range of applications such as assembly, forming and stamping.
| Description | Unit | 1T | 1.6T | 2.5T | 4T | 5T | |
| Nominal Force | KN | 1 | 1.6 | 2.5 | 4 | 5 | |
| Table size | L-R | mm | 300 | 300 | 350 | 350 | 350 |
| F-B | mm | 250 | 250 | 300 | 300 | 350 | |
| Max opening height | mm | 300 | 300 | 350 | 350 | 350 | |
| Max stroke of slider | mm | 120 | 120 | 160 | 160 | 200 | |
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | |
| Down speed of slider | mm/s | 60 | 50 | 42 | 42 | 42 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | |
| Operation Height | mm | 200 | 200 | 200 | 200 | 200 | |
| Powder of motor | KW | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
