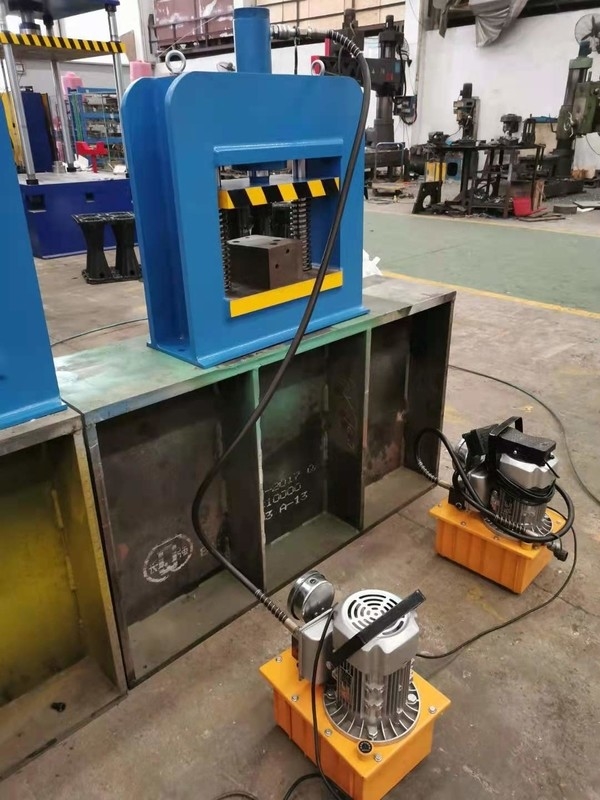

CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height

Certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
China Wuxi Meili Hydraulic Pressure Machine Factory certification
I'm Online Chat Now

CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height

CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height
CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height

Large Image :  CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height

Product Details:
Place of Origin: CHINA
Brand Name: MEILI
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Iron Pallet
Delivery Time: In 60days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 80 Sets per Month

CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height

Description
Product Name: 2.5T Portable Hydraulic Table Press For Sale Force: 2.5T
Advantage: Portable Hydraulic Press Warranty: 2 Years
Max Opening Height: 350mm Max Stroke Of Slider: 160mm
Throat Depth: 160mm Power Source: Hydraulic
High Light:

CE ISO small benchtop hydraulic press

,

small benchtop hydraulic press 200mm

,

bench top hydraulic press 2.5Ton

2.5T portable hydraulic table press for sale





These are the presses for forming sheet metal. They are leading, machines or steel door and white appliances like refrigerators,laundry machines, etc.
Desired designs are connecting to platforms with molds to the fast and standard way. These presses provide standard and fast production opportunities for manufacturers.
Our manufacturing is customer-oriented. We can manufacture in all dimensions and characteristics according to the buyer's request.



Whether you provide your own bench, or we supply one for you, these compact but powerful bench top hydraulic presses can be used for a wide range of applications such as assembly, forming and stamping.


 Description  Unit 1T 1.6T 2.5T 4T 5T
 Nominal Force KN 1 1.6 2.5 4 5
 Table size L-R mm 300 300 350 350 350
 F-B mm 250 250 300 300 350
 Max opening height mm 300 300 350 350 350
 Max stroke of slider mm 120 120 160 160 200
Throat Depth mm 120 120 160 160 180
 Down speed of slider mm/s 60 50 42 42 42
Return speed of slider mm/s 80 80 80 80 80
 Operation Height mm 200 200 200 200 200
Powder of motor KW 1.5 1.5 2.2 2.2 3


CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height 0

CE ISO Small Benchtop Hydraulic Press 2.5Ton 200mm Operation Height 1

Please contact MEILI when you need a helpful team committed to your success and satisfaction!
