Product Details:
|
| Product Name: | 2.5T C Frame Hydraulic Press Machine For Sale | Force: | 2.5T |
|---|---|---|---|
| Type: | C Frame | Warranty: | 2 Years |
| Advantage: | Easy Operation Machine | Core Components: | Moto Pump |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Usage: | Pressing Metal Products |
| High Light: | 2.5Ton C Frame Hydraulic Press Machine,hydraulic c type press machine PLC HMI,hydraulic c type press machine TPC |
||

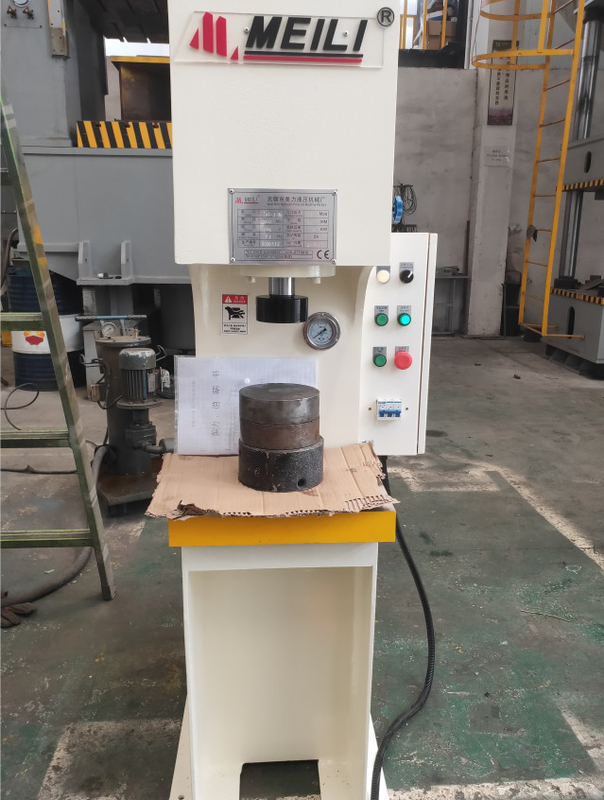

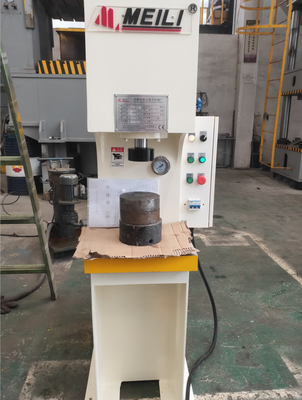

2.5T C Frame Hydraulic Press Machine for sale.
Advantages:
Independent electrical control with PLC and TPC.
Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
The pressure, stroke, and time of pressure maintaining can be regulated.
High quality and performance with good price.
Applications:
Compressing and pulling-out of shafts and bushings.
Flexing and deep-drawing of plates.
Compression molding of powder alloy and thermosetting resins.
Straightening of metal sheets.
Pressing and punching of metal sheets.
Compression testing.
Other various applications.
Standard:
Light curtain safety device
Touch panel controller(TPC)
PLC program controller
Stroke,speed digital control device
Cooler device Displacemert sensor
Constant stroke/constant pressure exchange
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 | |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 | |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 | |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 | |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 | |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 | |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
|
Overall size |
L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 | |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 | |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 | |
How can MEILI help you to solve these and other problems?
Whether you have a need for spare parts, service, or a new customized hydraulic press machine, we invite you to send us a email. Our team will take the time to understand your production requirements to ensure our solutions are uniquely suited to your needs. Contact us and let’s get started!
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
