Product Details:
|
| Product Name: | 200T High Speed Hydraulic Press Machine For Stamping | Nominal Force: | 200KN |
|---|---|---|---|
| Usage: | Stamping | Max Opening Height: | 800mm |
| Stroke Of Slider: | 500mm | Keyword: | Hydraulic Press Machine |
| High Light: | TPC high speed hydraulic press,200Ton high speed hydraulic press,200Ton hydraulic metal stamping press |
||
200T high speed Hydraulic Press Machine for stamping.

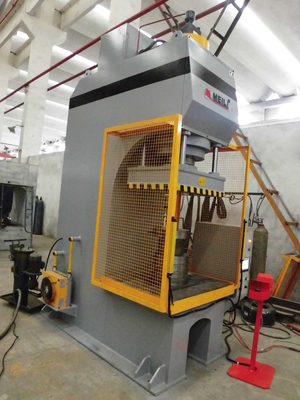

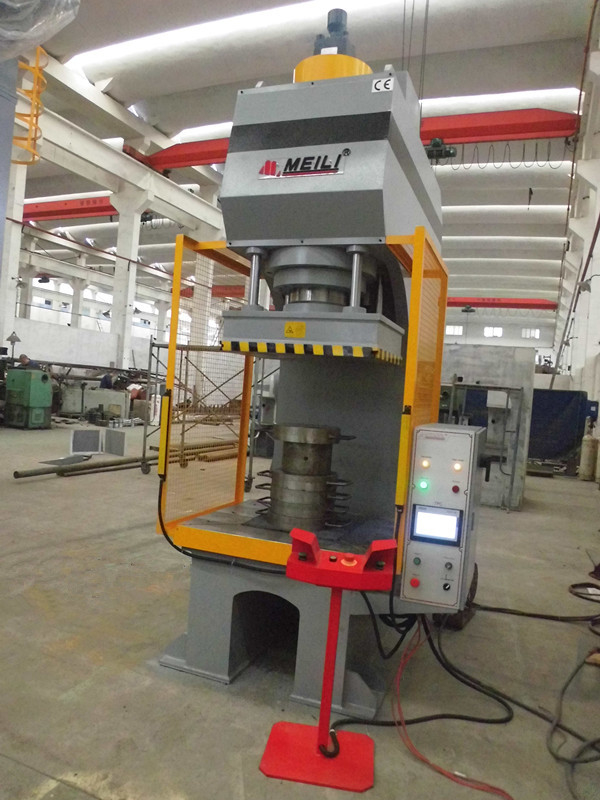

C-FRAME HYDRAULIC PRESSES
C-frame hydraulic presses are commonly referred to as 'C' type presses because of the characteristic shape of the machine body resembling the 'C' letter. The advantage of the C-frame presses is a possibility to access the workspace from three sides what makes the process of tooling exchange easier and enable processing of the wide elements.
Our hydraulic presses can be used in practically every branch of industry in any technological process in which there are operations such as pressing, punching, stamping, drawing, pressing in, sizing, forming, bending, etc.

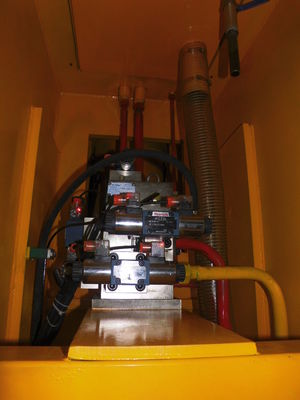

HYDRAULIC SYSTEM
The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload.
The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.
| Description | Unit | 10T | 16T | 25T | 40T | 63T | 100T | 200T | 250T | 315T | 400T | |
| Nominal Force | KN | 10 | 16 | 25 | 40 | 63 | 100 | 200 | 250 | 315 | 400 | |
| Table size | L-R | mm | 500 | 600 | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| F-B | mm | 440 | 500 | 600 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | |
| Slider | L-R | mm | 400 | 400 | 450 | 500 | 500 | 500 | 700 | 800 | 800 | 800 |
| F-B | mm | 300 | 350 | 350 | 400 | 450 | 450 | 550 | 650 | 700 | 700 | |
| Hydraulic cushion | Force | T | 500 | 600 | 700 | 700 | 700 | 700 | ||||
| Stroke | mm | 400 | 400 | 450 | 450 | 500 | 500 | |||||
| Max opening height | mm | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 900 | 900 | |
| Stroke of slider | mm | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Throat Depth | mm | 250 | 280 | 280 | 300 | 300 | 325 | 325 | 400 | 400 | 400 | |
| Down speed of slider | mm/s | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 120 | 120 | |
| Working speed of slider | mm/s | 10-15adjustable | ||||||||||
| Return speed of slider | mm/s | 120 | 120 | 120 | 120 | 120 | 120 | 110 | 110 | 87 | 85 | |
| Operation Height | mm | 710 | ||||||||||
| Powder of motor | KW | 2.2 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 22 | |
| Total weight | T | 1 | 1.5 | 2 | 2.5 | 3.5 | 4.5 | 7.5 | 9.6 | 15 | 20 | |
MEILI has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades. All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy. We don’t rush or take the easy way out. Reliable press tailored to your application by MEILI who truly care about you and your business.
Our product offerings include:
Multi-action Presses
C-Frame Presses (1-300 tons)
4-Post Presses (up to 1,200 tons)
H-Frame Presses(up to 1,200 tons)
Service
Maintenance
Spare Parts
C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC).
C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and producing hydraulic press for 20 years. So the product is stable and with high quality.
