Product Details:
|
| Product Name: | 315T Servo Column Press For Deep Drawing | Force (kN): | 3150KN |
|---|---|---|---|
| Function: | Deep Drawing | Ejecting Force: | 630KN |
| Advantage: | Easy Operation Machine | Slider Stroke: | 500mm |
| System: | Servo | Power Source: | Hydraulic |
| High Light: | 315T hydraulic deep draw machine,hydraulic deep drawing press 3150KN,hydraulic deep drawing press CE ISO9001 |
||

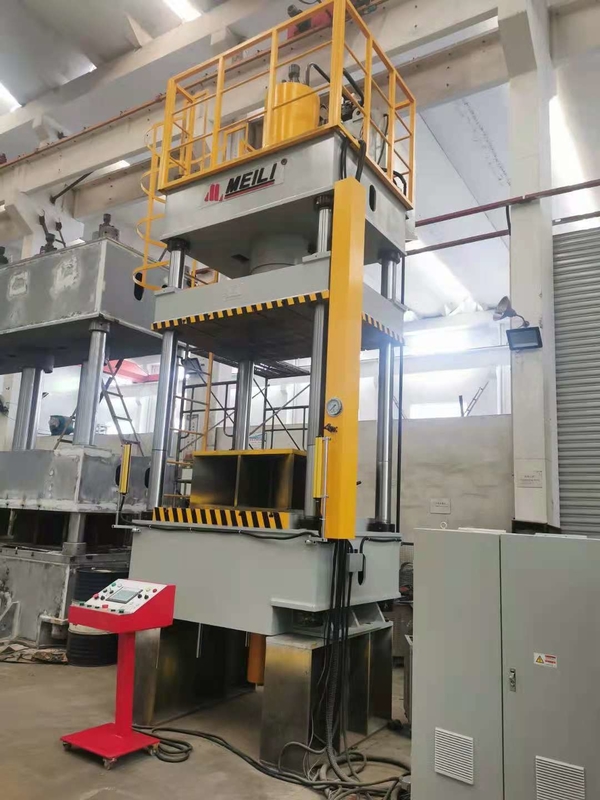

315T Servo Column Hydraulic Deep Drawing Press 3150KN CE ISO9001
Our custom Column Presses are available from 2-1000 tons. Each press can be equipped with hydraulic power unit and controls tailored to your specific application.
Applications
Single column hydraulic press mainly applies to the fields of machine tool,engineering machinery,electrical componts,bearings,washing machine,automobile parts,motor components and power metallurgy.
OPTIONAL ACCESSORIES/FUCTIONS:
Die lifters
Die clamps
Dowel holes
Slug holes
Moving platens
Die cushions
Ejectors
| Specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T | |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 | |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 | |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 | |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 | |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 | |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 | |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 | |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 | |
